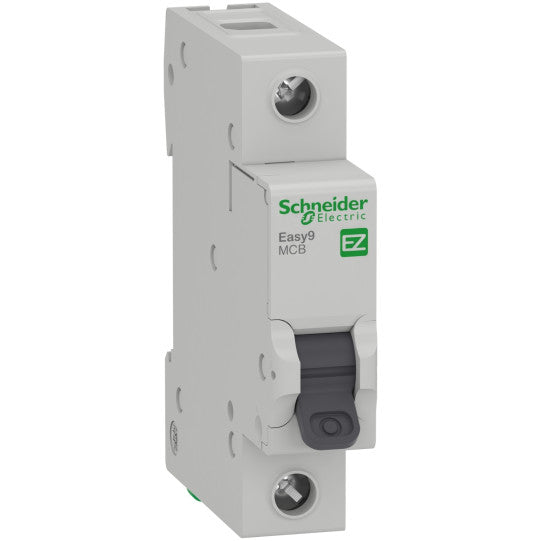

Easy9 miniature circuit breaker- 1P - 40 A - C curve - 6000 A - 230 V - EZ9F56140
SKU : EZ9F56140
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Easy9 miniature circuit breaker- 1P - 40 A - C curve - 6000 A - 230 V - EZ9F56140
DESCRIPTION
| Range: | Easy9 |
|---|---|
| Device application: | Distribution |
| Product or component type: | Miniature circuit-breaker |
| Device short name: | Easy9 MCB |
| Poles: | 1P |
| Number of protected poles: | 1 |
| [In] Rated current: | 40 A |
| Network type: | AC |
| Trip unit technology: | Thermal-magnetic |
| Curve code: | C |
| Breaking capacity: | 6000 A Icn at 230 V AC 50/60 Hz conforming to IEC 60898-1; 10000 A Icn at 127 V AC 50/60 Hz conforming to IEC 60898-1 |
| Suitability for isolation: | Yes, conforming to IEC 60898-1 |
| Network frequency: | 50/60 Hz |
| [Ue] Rated operational voltage: | 230 V AC 50 Hz; 127 V AC 50 Hz |
| Magnetic tripping limit: | 5...10 x In |
| [Ics] Rated service breaking capacity: | 6 kA 100% x Icn at 230 V AC 50/60 Hz conforming to IEC 60898-1 |
| [Ui] Rated insulation voltage: | 500 V AC 50/60 Hz conforming to IEC 60898-1 |
| [Uimp] Rated impulse withstand voltage: | 4 kV conforming to IEC 60898-1 |
| Contact position indicator: | Yes |
| Control type: | Toggle |
| Local signalling: | Without |
| Mounting mode: | Clip-on |
| Mounting support: | DIN rail |
| 9 mm pitches: | 2 |
| Height: | 81 mm |
| Width: | 18 mm |
| Depth: | 66.5 mm |
| Colour: | Grey (RAL 7035) |
| Mechanical durability: | 10000 cycles |
| Electrical durability: | 4000 cycles |
| Connections - terminals: | Tunnel type terminal (top or bottom) 1?25 mm² flexible; Tunnel type terminal (top or bottom) 1?35 mm² rigid |
| Tightening torque: | 3.5 N.m top or bottom |
| Earth-leakage protection: | Without |
| Standards: | IEC 60898-1 |
| Product certifications: | VDE, CE |
| IP degree of protection: | IP20 conforming to IEC 60529 |
| Pollution degree: | 2 |
| Tropicalisation: | 2 |
| Relative humidity: | 95% at -5?60 °C |
| Ambient air temperature for operation: | -5?60 °C |
| Ambient air temperature for storage: | -40?85 °C |
