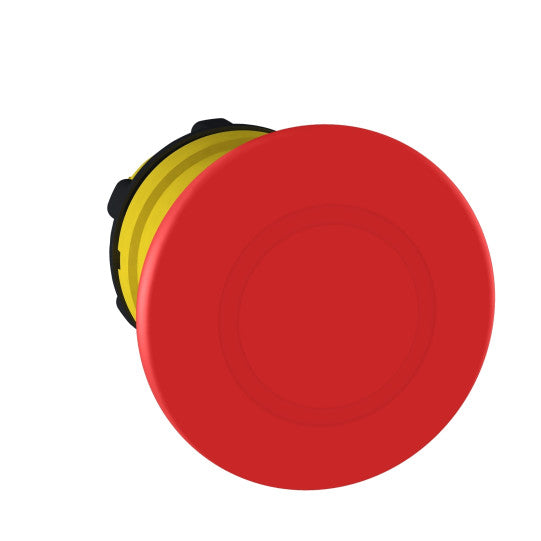

Emergency stop head, switching off, plastic, red mushroomØ40, Ø22, trigger latching push-pull - ZB5AT84
SKU : ZB5AT84
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Emergency stop head, switching off, plastic, red mushroomØ40, Ø22, trigger latching push-pull - ZB5AT84
DESCRIPTION
| Range of product: | Harmony XB5 |
|---|---|
| Product or component type: | Head for emergency stop push-button |
| Product destination: | Emergency stop push-button |
| Device short name: | ZB5 |
| Bezel material: | Dark grey plastic |
| Head type: | Standard |
| Mounting diameter: | 22 mm |
| Sale per indivisible quantity: | 1 |
| Shape of signaling unit head: | Round |
| Type of operator: | trigger action and mechanical latching |
| Reset: | Push-pull |
| Operator profile: | Red mushroom Ø 40 mm, unmarked |
| Device presentation: | Basic element |
| CAD overall width: | 40 mm |
|---|---|
| CAD overall height: | 40 mm |
| CAD overall depth: | 56 mm |
| Product weight: | 0.05 kg |
| Mechanical durability: | 300000 cycles |
| Main group: | E-stop |
| Group of product: | Emergency stop pull to release |
| Station name: | XALD 1 cut-outXALK 1 cut-out |
| Cap/operator or lens colour: | Red |
| Marking: | Unmarked |
| Electrical composition code: | C7 for C8 for C11 for C15 for SF1 for SR1 for C10 for |
| Customizable: | No |
| Customizable: | 0 |
| Compatibility code: | ZB5 |
| Protective treatment: | TH |
|---|---|
| Ambient air temperature for storage: | -40...70 °C |
| Ambient air temperature for operation: | -40...70 °C |
| Overvoltage category: | Class II conforming to IEC 60536 |
| IP degree of protection: | IP66 conforming to IEC 60529IP67IP69IP69K |
| NEMA degree of protection: | NEMA 13NEMA 4X |
| Resistance to high pressure washer: | 7000000 Pa at 55 °C, distance |
| IK degree of protection: | IK03 conforming to IEC 50102 |
| Standards: | EN/ISO 13850EN/IEC 60947-5-1CSA C22.2 No 14IEC 60364-5-53JIS C8201-5-1UL 508EN/IEC 60947-1GB 14048.5EN/IEC 60947-5-4EN/IEC 60947-5-5EN/IEC 60204-1JIS C8201-1 |
| Product certifications: | LROS (Lloyds register of shipping)BVDNVUL listedGLCSA |
| Vibration resistance: | 5 gn (f= 2...500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance: | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-2750 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389110907742 |
|---|
