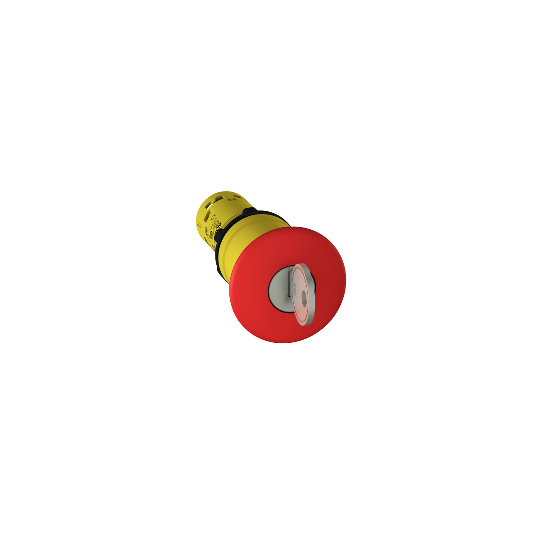

Emergency stop push button, Harmony XB7, 22mm, red mushroom 40mm, trigger key release, 1NO + 1NC - XB7NS9445
SKU : XB7NS9445
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Emergency stop push button, Harmony XB7, 22mm, red mushroom 40mm, trigger key release, 1NO + 1NC - XB7NS9445
DESCRIPTION
| Range of product: | Harmony XB7 |
|---|---|
| Product or component type: | Emergency stop push-button |
| Device short name: | XB7 |
| Mounting diameter: | 22 mm |
| Sale per indivisible quantity: | 10 |
| Shape of signaling unit head: | Round |
| Type of operator: | latching |
| Reset: | Key release |
| Operator profile: | Red mushroom Ø 40 mm, unmarked |
| Type of keylock: | Key 455 |
| Contacts type and composition: | 1 NO + 1 NC |
| Connections - terminals: | Screw clamp terminals, Screw clamp terminals, 1 x 0.34...2 x 2.5 mm² without cable end conforming to IEC 60947-1 |
| Device presentation: | Monolithic product |
| CAD overall width: | 40 mm |
|---|---|
| CAD overall height: | 40 mm |
| CAD overall depth: | 72 mm |
| Terminals description ISO n°1: | (21-22)NC(13-14)NO |
| Net weight: | 0.035 kg |
| Device mounting: | Fixing hole - diameter: 22.5 mm 22.3 +0.4/0 conforming to IEC 60947-1 |
| Fixing center: | >= 30 x 40 mm (support panel) metal - thickness: 1...6 mm>= 30 x 40 mm (support panel) plastic - thickness: 2...6 mm |
| Fixing mode: | Fixing nut beneath head: 2...2.4 N.m |
| Contact operation: | Snap action |
| Contacts usage: | Standard |
| Positive opening: | With conforming to IEC 60947-5-1 appendix K |
| Mechanical durability: | 100000 cycles |
| Tightening torque: | 0.8...1.2 N.m conforming to IEC 60947-1 |
| Shape of screw head: | Cross compatible with JIS No 1 screwdriverCross compatible with Philips no 1 screwdriverCross compatible with pozidriv No 1 screwdriverSlotted compatible with flat Ø 4 mm screwdriverSlotted compatible with flat Ø 5.5 mm screwdriver |
| Short-circuit protection: | 4 A cartridge fuse type gG conforming to IEC 60947-5-1 |
| [Ui] rated insulation voltage: | 250 V (pollution degree 3) conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage: | 4 kV conforming to IEC 60947-1 |
| [Ie] rated operational current: | 0.1 A at 250 V, DC-13, R300 conforming to IEC 60947-5-10.22 A at 125 V, DC-13, R300 conforming to IEC 60947-5-10.75 A at 240 V, AC-15, C300 conforming to IEC 60947-5-11.5 A at 120 V, AC-15, C300 conforming to IEC 60947-5-1 |
| Electrical durability: | 1000000 cycles, DC-13, 0.3 A at 24 V, operating rate 1000000 cycles, AC-15, 0.03 A at 230 V, operating rate 1000000 cycles, AC-15, 0.09 A at 240 V, operating rate |
| Electrical reliability: | ? |
| Compatibility code: | XB7 |
| Cap/operator or lens colour: | Red |
| Protective treatment: | TH |
|---|---|
| Ambient air temperature for storage: | -40...70 °C |
| Ambient air temperature for operation: | -25...70 °C |
| Electrical shock protection class: | Class II conforming to IEC 60536 |
| IP degree of protection: | IP20 (rear face) conforming to IEC 60529IP65 (front face) conforming to IEC 60529 |
| NEMA degree of protection: | NEMA 12 conforming to UL 50NEMA 3 conforming to UL 50 |
| Standards: | IEC 60947-5-5IEC 60364-5-53ISO 13850IEC 60947-1IEC 60947-5-1CSA C22.2 No 14UL 508IEC 60204-1 |
| Product certifications: | CCCGOST |
| Vibration resistance: | 5 gn (f= 2...500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance: | 15 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Unit Type of Package 1: | PCENumber of Units in Package 1 |
| Code EAN: | 3606480465659 |
|---|
