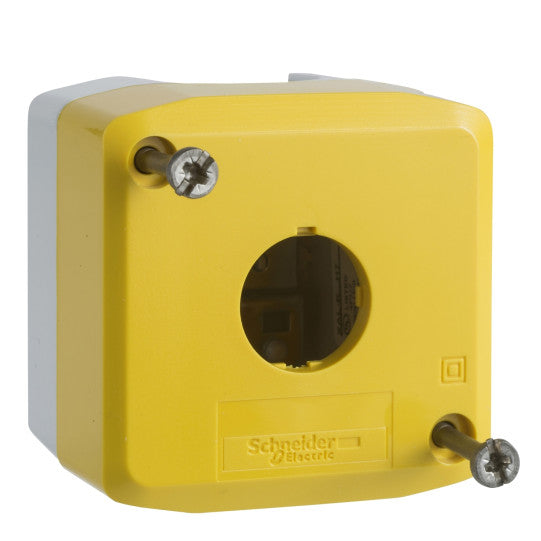

Empty enclosure, plastic, yellow lid for push button Ø22, 1 cut-out - XALK01
DESCRIPTION
| Range of product: | Harmony XALK |
|---|---|
| Product or component type: | Empty control station |
| Device short name: | XALK |
| Product destination: | For XB5 Ø 22 mm control and signalling units |
| Control station application: | Emergency stop functionEmergency switching off function |
| Number of cut-out: | 1 cut-out |
| Colour of base of enclosure: | Light grey (RAL 7035) |
| Colour of cover: | Yellow (RAL 1021) |
| Material: | Polycarbonate |
| Cable entry: | 1 knock-out for cable entry, clamping capacity: 14 mm2 knock-outs for Pg 13 cable gland and ISO M20, clamping capacity: 12 mm |
| IP degree of protection: | IP66 conforming to IEC 60529IP67IP69IP69K |
| Assembly style: | For customer assembly |
|---|---|
| Number of horizontal rows: | 1 |
| Number of vertical rows: | 1 |
| Product weight: | 0.136 kg |
| Resistance to high pressure washer: | 7000000 Pa at 55 °C, distance |
| Mounting of block: | Front mountingRear mounting |
| Electrical composition code: | SR1SF1MR1MF1 |
| Main group: | 1 cut-out |
| Group of product: | Standard yellow |
| Customizable: | No |
| Compatibility code: | XALK |
| Customizable: | 1 |
| GCR BRIDGE: | XALK01CUST01 |
| Protective treatment: | TH |
|---|---|
| Ambient air temperature for storage: | -40...70 °C |
| Ambient air temperature for operation: | -40...70 °C |
| Overvoltage category: | Class II conforming to IEC 60536 |
| NEMA degree of protection: | NEMA 13NEMA 4X |
| IK degree of protection: | IK03 conforming to EN 50102 |
| Standards: | EN/IEC 60947-5-5UL 508EN/IEC 60947-5-4JIS C8201-5-1CSA C22.2 No 14EN/IEC 60947-1EN/IEC 60947-5-1JIS C8201-1 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389110115826 |
|---|
