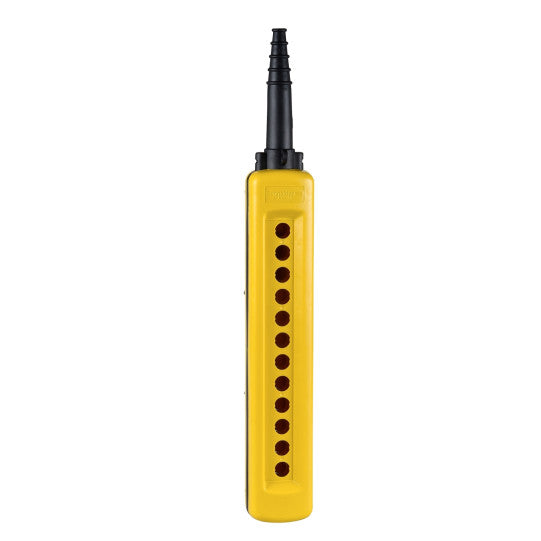

empty pendant control station XAC-A - 12 openings in 1 column - XACA12
SKU : XACA12
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
empty pendant control station XAC-A - 12 openings in 1 column - XACA12
DESCRIPTION
| Range of product: | Harmony XAC |
|---|---|
| Product or component type: | Pendant control station |
| Device short name: | XACA |
| Control station type: | Double insulated |
|---|---|
| Enclosure material: | Polypropylene |
| Electrical circuit type: | Control circuit |
| Enclosure type: | Empty enclosure |
| Number of cut-out: | 12 cut-outs |
| Control station colour: | Yellow |
| Cable entry: | Rubber sleeve with stepped entry 8...26 mm |
| Guard rail: | Without |
| Vertical operator cut-out centre: | 30 mm |
| Standards: | EN/IEC 60204-32CSA C22.2 No 14EN/IEC 60947-5-1UL 508 |
| Product certifications: | CCCGOST |
| Protective treatment: | TH |
| Ambient air temperature for operation: | -25...70 °C |
| Ambient air temperature for storage: | -40...70 °C |
| Vibration resistance: | 15 gn (f= 10...500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance: | 100 gn conforming to IEC 60068-2-27 |
| Overvoltage category: | Class II conforming to IEC 61140 |
| IP degree of protection: | IP65 conforming to IEC 60529 |
| IK degree of protection: | IK08 conforming to EN 50102 |
| Mechanical durability: | 1000000 cycles |
| Product weight: | 1 kg |
| Sustainable offer status: | Green Premium product |
|---|---|
| REACh Regulation: | Free of Substances of Very High Concern above the threshold |
| REACh free of SVHC: | Yes |
| EU RoHS Directive: | Pro-active compliance (Product out of EU RoHS legal scope) |
| Toxic heavy metal free: | Yes |
| Mercury free: | Yes |
| RoHS exemption information: | Yes |
| China RoHS Regulation: | X |
| Environmental Disclosure: | ENVPEP070905EN |
| Code EAN: | 3389110645088 |
|---|
