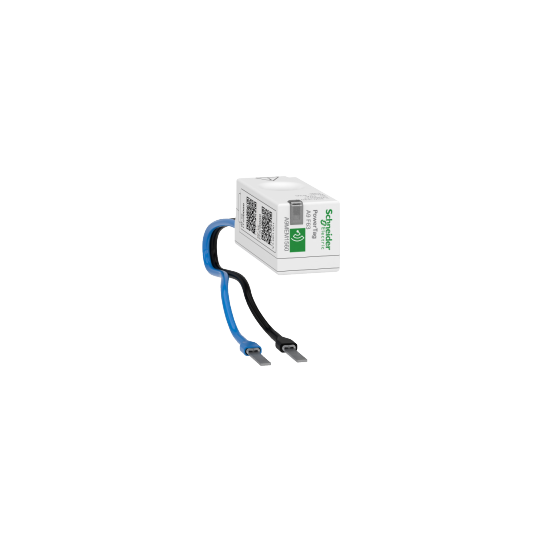

energy sensor, PowerTag Flex 230V 63A 1P+N top and bottom position - A9MEM1560
SKU : A9MEM1560
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
energy sensor, PowerTag Flex 230V 63A 1P+N top and bottom position - A9MEM1560
DESCRIPTION
| Range: | PowerLogic |
|---|---|
| Product name: | PowerTag A9 F63 |
| Product or component type: | Energy sensor |
| Poles description: | 1P + N |
| Max current: | 63 A |
| [Ib] basic current: | 10 A |
| Starting current: | 40 mA |
| Saturation current: | 130 A |
| Product specific application: | Cost allocationLoad monitoringCircuit monitoringOverload alarmEnergy management |
| Concentrator compatibility: | Acti9 Smartlink SI BActi9 Smartlink SI DActi9 PowerTag Link CActi9 PowerTag LinkActi9 PowerTag Link HDHarmony HubWiser IP moduleEcoStruxure Panel Server UniversalEcoStruxure Panel Server AdvancedPrismaSet Active |
| Market segment: | Buildings: breaker voltage monitoringBuildings: cost allocationBuildings: overload alarm |
| Range compatibility: | Acti 9 Acti 9 iCV40Acti 9 Vigi iC40Acti 9 Vigi iC60Acti 9 Acti 9 iDD40 XAActi 9 Acti 9 iCV40 XAActi 9 Vigi iDT40 |
| Type of measurement: | Active energyCurrentVoltagePower factorActive power |
| Accuracy class: | Class 1 current conforming to IEC 61557-12Class 0.5 voltage conforming to IEC 61557-12Class 1 active power conforming to IEC 61557-12Class 1 active energy conforming to IEC 61557-12Class 1 power factor conforming to IEC 61557-12 |
| Mounting location: | Top or bottom |
| Mounting support: | On circuit breaker |
| Product destination: | Switchboard |
| Event management: | Voltage loss with measured current at voltage loss |
| Transmission support medium: | Radio frequency 2.4...2.4835 GHz conforming to IEEE 802.15.4 |
| Emission power: | 10 mW |
| Form factor: | Flex |
|---|---|
| Mounting mode: | By screws (terminals) |
| Electrical connection: | Wires with cable end |
| Cable cross section: | 1 rigid cable 1.5...16 mm²2 stranded cable 1.5...2.5 mm²2 rigid cable 1.5...2.5 mm²1 stranded cable 1.5...16 mm² |
| Cable length: | 0.25 m |
| [Ue] rated operational voltage: | 200...240 V AC, +/- 20 % |
| Cable composition: | 1 x 0.33 mm² |
| Network frequency: | 50 Hz60 Hz |
| Power consumption in VA: | 1 VA |
| Standards: | IEC 61557-12IEC 61010-1IEC 61010-2-030IEC 61326-1ETSI EN 300 328ETSI EN 301 487-1 |
| Height: | Sensor element: 20 mm |
| Width: | Sensor element: 18 mm |
| Depth: | Sensor element: 44.5 mm |
| Net weight: | 16 g |
| Colour: | White (RAL 9003) |
| Compatibility code: | PowerTag A9 P63 |
| Quality labels: | CE |
|---|---|
| Directives: | 2014/53/EU - radio equipment directive |
| Operating altitude: | 0...2000 m |
| Ambient air temperature for operation: | -25...60 °C |
| Ambient air temperature for storage: | -40...85 °C |
| Overvoltage category: | III conforming to IEC 61010-1 |
| Measurement category: | Category III conforming to IEC 61010-2-030 |
| IP degree of protection: | IP20 conforming to IEC 60529 |
| IK degree of protection: | IK05 |
| Pollution degree: | 3 |
| Relative humidity: | 0...95 % at 45 °C conforming to IEC 60721-3-3 |
| Vibration resistance: | 3M4 conforming to IEC 60721-3-3 |
| Electromagnetic compatibility: | Industrial electromagnetic environment conforming to IEC 61326-1Radiated EMC conforming to ETSI EN 301 489-17Electromagnetic emission conforming to IEC 62311 |
| Environmental characteristic: | Dustproof class 3S3 conforming to IEC 60721-3-3Salt mist class 3C2 conforming to IEC 60721-3-3Indoor use |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Unit Type of Package 1: | PCENumber of Units in Package 1 |
| Code EAN: | 3606481380395 |
|---|
