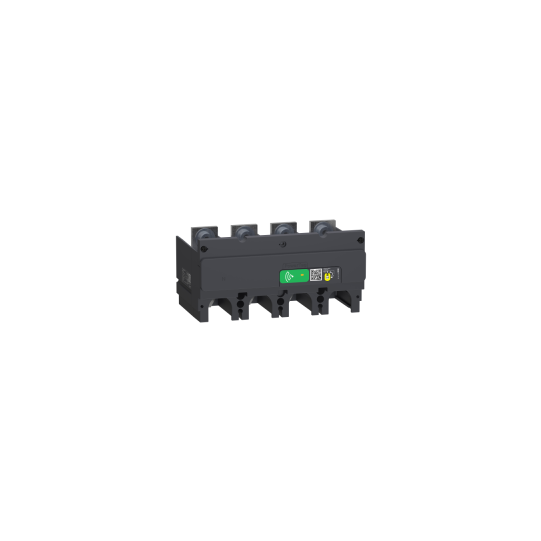

Energy Sensor PowerTag NSX - 630 A - 3P+N - LV434023
SKU : LV434023
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Energy Sensor PowerTag NSX - 630 A - 3P+N - LV434023
DESCRIPTION
| Range: | PowerLogic |
|---|---|
| Product name: | PowerTag M630 |
| Product or component type: | Energy sensor |
| Poles description: | 3P + N |
| Max current: | 630 A |
| [Ib] basic current: | 100 A |
| Starting current: | 400 mA |
| Saturation current: | 1260 A |
| Product specific application: | Energy managementOverload alarmPower factorLoad monitoringCircuit monitoring |
| Concentrator compatibility: | Acti9 Smartlink SI BActi9 Smartlink SI DActi9 PowerTag Link CActi9 PowerTag LinkActi9 PowerTag Link HDHarmony HubWiser IP moduleEcoStruxure Panel Server UniversalEcoStruxure Panel Server AdvancedPrismaSet Active |
| Range compatibility: | Compact NSX Compact NSX400...630Compact INS Compact INS320...630Compact INV Compact INV320...630Compact NS Compact NS400/630EasyPact EasyPact CVS400EasyPact EasyPact CVS630 |
| Type of measurement: | Active and reactive energyActive and reactive powerApparent powerCurrentVoltagePower factor |
| Accuracy class: | Class 1 active energy conforming to IEC 61557-12Class 2 reactive energy conforming to IEC 61557-12Class 1 active power conforming to IEC 61557-12Class 2 reactive power conforming to IEC 61557-12Class 2 apparent power conforming to IEC 61557-12Class 1 current conforming to IEC 61557-12Class 0.5 voltage conforming to IEC 61557-12Class 1 power factor conforming to IEC 61557-12 |
| Metering type: | Power factor 0...1: class 1 at 25 °C conforming to IEC 61557-12Active energy Ep IN/OUT/tot 0...281 x 10exp(9) kWh: class 1 at 25 °C conforming to IEC 61557-12Reactive energy Ep IN/OUT/tot 0...281 x 10exp(9) kVARh: class 2 at 25 °C conforming to IEC 61557-12Voltage U12, U23, U31 320...480 V: class 0.5 at 25 °C conforming to IEC 61557-12Voltage V1N, V2N, V3N 184...276 V: class 0.5 at 25 °C conforming to IEC 61557-12Current I1, I2, I3, Iavg 20...630 A: class 1 at 25 °C conforming to IEC 61557-12Apparent power S, S1, S2, S6 221 VA...1048 kVA: class 2 at 25 °C conforming to IEC 61557-12Active power P, P1, P2, P6 221 W...1048 kW: class 1 at 25 °C conforming to IEC 61557-12Reactive power Q, Q1, Q2, Q6 221 VAR...1048 kVAR: class 2 at 25 °C conforming to IEC 61557-12Frequency 45...65 Hz |
| Mounting location: | Bottom |
| Mounting support: | On circuit breaker |
| Connection pitch: | 45 mm |
| Product destination: | Switchboard |
| Event management: | Voltage loss with measured current at voltage loss |
| Transmission support medium: | Radio frequency 2.4...2.4835 GHz conforming to IEEE 802.15.4 (11...26) transmission time |
| Emission power: | 10 mW |
| [Imp] maximum permanent current: | 1.2 x In |
|---|---|
| Form factor: | Monoconnect |
| Mounting mode: | Bolt-on |
| Tightening torque: | 50 N.m |
| [Ue] rated operational voltage: | 230 V AC, +/- 20 %, between phase and neutral400 V AC, +/- 20 %, between phases |
| Network frequency: | 50 Hz60 Hz |
| Power consumption in VA: | 3.7 VA |
| Standards: | IEC 61557-12IEC 61010-1ETSI EN 301 487-1IEC 61010-2-030IEC 61326-1ETSI EN 300 328 |
| Height: | 91 mm |
| Width: | 185 mm |
| Depth: | 110 mm |
| Net weight: | 1000 g |
| Colour: | Dark grey (RAL 7016) |
| Quality labels: | CE |
|---|---|
| Directives: | 2014/53/EU - radio equipment directive |
| Operating altitude: | 0...2000 m |
| Ambient air temperature for operation: | -25...70 °C |
| Ambient air temperature for storage: | -50...85 °C |
| Overvoltage category: | IV conforming to IEC 61010-1 |
| Measurement category: | Category III conforming to IEC 61010-2-030 |
| IP degree of protection: | IP20 |
| IK degree of protection: | IK07 conforming to IEC 60068-2-75 test Ehb |
| Pollution degree: | 3 |
| Relative humidity: | 0...95 % at 55 °C conforming to IEC 60721-3-3 |
| Vibration resistance: | 3M4 conforming to IEC 60721-3-3 |
| Electromagnetic compatibility: | Industrial electromagnetic environment conforming to IEC 61326-1Radiated EMC conforming to ETSI EN 301 489-17Electromagnetic emission conforming to IEC 62311 |
| Environmental characteristic: | Indoor use |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Unit Type of Package 1: | PCENumber of Units in Package 1 |
| Code EAN: | 3606485467047 |
|---|
