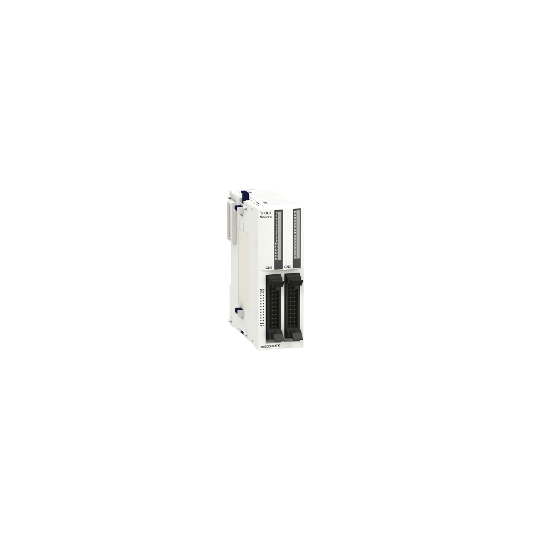

EXPANSION, 32 OUT TR SCE, - TM2DDO32TK
SKU : TM2DDO32TK
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
EXPANSION, 32 OUT TR SCE, - TM2DDO32TK
DESCRIPTION
| Range of product: | Modicon M238 logic controller |
|---|---|
| Product or component type: | Discrete output module |
| Discrete output number: | 32 |
| Discrete output type: | Transistor |
| Discrete output voltage: | 24 V |
| Discrete output logic: | Source |
| Discrete output current: | 0.4 A |
| Range compatibility: | Advantys OTBTwido |
|---|---|
| Output voltage limits: | 20.4...28.8 V |
| Current per channel: | 0.48 A |
| Current per output common: | 2 A |
| Number of common point: | 2 |
| Response time: | 450 µs from state 0 to state 1450 µs from state 1 to state 0 |
| [Ures] residual voltage: | |
| Leakage current: | 0.1 mA |
| Inductive load: | |
| Tungsten load: | |
| Short-circuit protection: | With automatic reactivaton |
| Overload protection: | With automatic reactivaton |
| Isolation between channels: | None |
| Isolation between channels and internal logic: | 500 V for 1 minute |
| Current consumption: | 25 mA 5 V DC at state 1 for all output40 mA 24 V DC at state 1 for all output |
| Local signalling: | 2 display blocks |
| Electrical connection: | 1 connector HE10 |
| Mounting support: | 35 mm symmetrical DIN rail |
| Product weight: | 0.105 kg |
| Depth: | 81.3 mm |
|---|---|
| Height: | 90 mm |
| Width: | 33.5 mm |
| Warranty period: | 18 months |
| Sustainable offer status: | Green Premium productRoHS (date code: YYWW) |
| Code EAN: | 3595863995923 |
|---|---|
| Contexte: |
Optimise your machine design High ratio performance / cost with efficient embedded features dedicated to simple axis motion control (high speed counting, PTO, application function blocks) Secure your investment and development flexibility Fit the control configuration Advanced features embedded
Easy to program and commissioning
|
