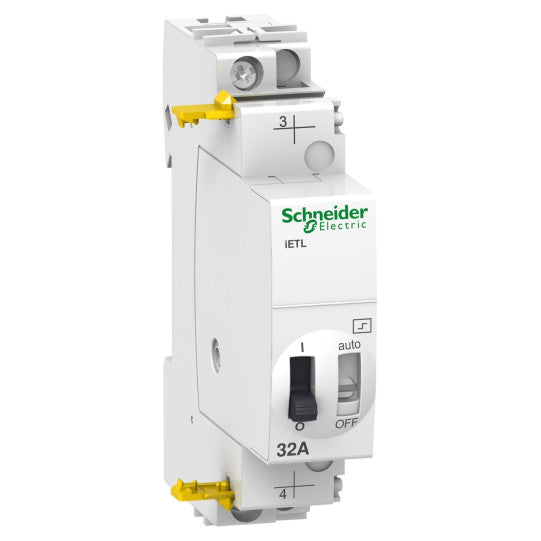

extension ETL iTL 32 - 1P -1NO - 32A - coil 110 VDC - 230...240VAC 50/60Hz - A9C32836
SKU : A9C32836
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
extension ETL iTL 32 - 1P -1NO - 32A - coil 110 VDC - 230...240VAC 50/60Hz - A9C32836
DESCRIPTION
| Range of product: | ITL |
|---|---|
| Range: | Acti 9 |
| Product or component type: | Extension for impulse relay |
| Device short name: | IETL iTL 32 |
| Relay application: | Remote control |
| Poles description: | 1P |
| Pole contact composition: | 1 NO |
| [In] rated current: | 32 A |
| Network type: | AC |
| Network frequency: | 50/60 Hz |
|---|---|
| [Ue] rated operational voltage: | 415 V AC 50/60 Hz |
| Control type: | ToggleRemote control |
| Control signal type: | Impulse |
| Switching frequency: | 5 switching operations/minute |
| Impulse duration: | 50 ms |
| Remote control type: | Illuminated push-button 3 mA |
| Local signalling: | ON/OFF indication |
| [Uc] control circuit voltage: | 230...240 V AC 50/60 Hz110 V DC |
| Supply inrush power: | 19 VA |
| Mounting mode: | Fixed, on right side of TL |
| Mounting support: | 35 mm symmetrical DIN rail |
| 9 mm pitches: | 2 |
| Height: | 60 mm |
| Width: | 18 mm |
| Depth: | 84 mm |
| Colour: | White |
| Electrical durability: | AC-21: 50000 cyclesAC-22: 20000 cycles |
| Connections - terminals: | Tunnel type terminals - |
| Range compatibility: | Acti 9 iTL iTL |
| Product compatibility: | ITL 32A |
| Market segment: | Small commercialResidential |
| Compatibility code: | IETL iTL 32 |
| Standards: | EN 669-1EN 669-2-2 |
|---|---|
| Noise level: | 60 dB |
| IP degree of protection: | IP20 conforming to IEC 60529 |
| Pollution degree: | 3 |
| Tropicalisation: | 2 conforming to IEC 60068-1 |
| Relative humidity: | 95 % at 55 °C |
| Ambient air temperature for operation: | -20...50 °C |
| Ambient air temperature for storage: | -40...70 °C |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3606480092039 |
|---|
