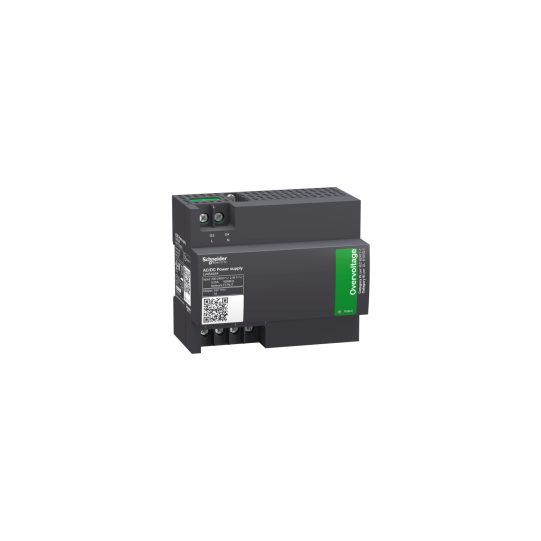

external power supply module 200 – 240 V AC - 24 V - 1 A - LV454444
SKU : LV454444
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
external power supply module 200 – 240 V AC - 24 V - 1 A - LV454444
DESCRIPTION
| Range of product: | ComPact NSX100...250ComPact NSX100...250 DCComPact NSX400...630ComPact NSX400...630 DCComPact NS630b...1600ComPact NS1600b...3200 |
|---|---|
| Range: | Masterpact |
| Product or component type: | External power supply module |
| Device application: | Power supply |
| Range compatibility: | Masterpact MTZMasterPact NTMasterpact NWComPact NSXComPact NSX DCComPact NS630b...1600ComPact NS1600b...3200PowerPact HPowerPact JPowerPact LPowerPact PPowerPact R |
| Accessory / separate part type: | Control units accessoriesTrip unit accessories |
| Trip unit name: | Micrologic |
|---|---|
| Power supply type: | Regulated switch mode |
| [Us] rated supply voltage: | 200...240 V AC 50/60 Hz tolerance: +10 % -15 % |
| Input voltage limits: | 170...264 V AC at 47.5...63 Hz |
| Output voltage: | 24 V DC +/-5 % |
| Overvoltage category: | IV conforming to IEC 62477-1III conforming to UL 61010-1 |
| Power supply output current: | 1 A |
| Rated power in W: | 24 W |
| Output protection type: | Against overload, protection technology: manual resetAgainst overvoltage, protection technology: 30...32 V, manual resetAgainst short-circuits, protection technology: manual resetThermal, protection technology: automatic reset |
| Inrush current: | 20 A 2 ms |
| Efficiency: | 85 % |
| Power dissipation in W: | 4.2 W |
| Holding time: | >= 20 ms 200...240 V AC |
| Permissible temporary current boost: | 1.5 A (200 ms) |
| Connections - terminals: | Screw type terminals, connection capacity: 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16Screw type terminals, connection capacity: 1 x 0.2...1 x 4 mm² AWG 24...AWG 12 |
| Mounting support: | 35 x 7.5 mm symmetrical DIN rail |
| Operating position: | Horizontal |
| Operating altitude: | 0...2000 m |
| Name of test: | Electrostatic discharges conforming to EN/IEC 61000-4-2Induced electromagnetic field conforming to EN/IEC 61000-4-6Magnetic field conforming to EN 61000-4-8Primary outage conforming to IEC 61000-4-11Radiated electromagnetic field conforming to EN/IEC 61000-4-3Rapid transient conforming to IEC 61000-4-4Surge conforming to EN/IEC 61000-4-5Radiated emissions conforming to EN 61000-6-3Conducted emissions on the power line conforming to EN 61000-6-3 |
| Status LED: | 1 LED (green)output voltage |
| Height: | 90 mm |
| Width: | 108 mm |
| Depth: | 67.5 mm |
| Standards: | UL 61010-1IEC 62477-1 |
|---|---|
| Marking: | EACCEUL |
| Environmental characteristic: | EMC conforming to EN/IEC 61000-6-2EMC conforming to EN/IEC 61000-6-3Safety conforming to IEC 62477-1Safety conforming to SELV |
| IP degree of protection: | IP4X (front face) conforming to EN/IEC 60529IP2x (connection terminals) conforming to EN/IEC 60529IP3x (housing) conforming to EN/IEC 60529 |
| Ambient air temperature for operation: | -25...70 °C |
| Ambient air temperature for storage: | -50...85 °C |
| Relative humidity: | 0...95 % during operation0...95 % in storage |
| Dielectric strength: | 3000 V between input and ground3000 V between input and output1500 V between output and ground |
| Compatibility code: | CB_EXTERNAL_POWERSUPPLY |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3606481190963 |
|---|
