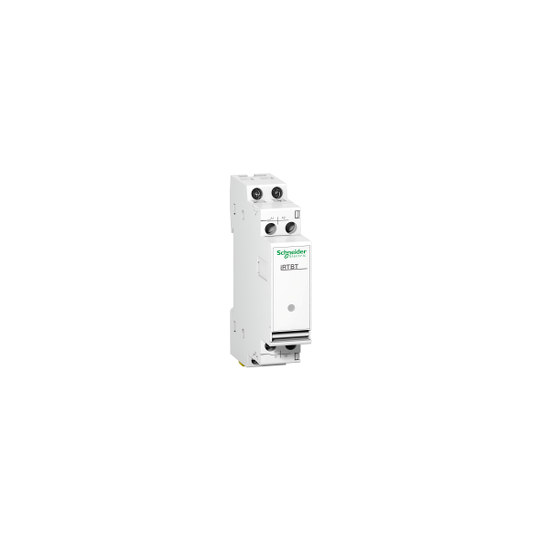

Extra low voltage relay iRTBT - 10mA/10VDC - 5A/250VAC - 12...24 VAC/DC - A9A15416
SKU : A9A15416
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Extra low voltage relay iRTBT - 10mA/10VDC - 5A/250VAC - 12...24 VAC/DC - A9A15416
DESCRIPTION
| Range: | Acti 9 |
|---|---|
| Product name: | Acti 9 iRTBT |
| Product or component type: | Relay |
| Device short name: | IRTBT |
| Device application: | Extra low voltage interface relay |
| Function available: | Actuation of LV circuits based on an extra low voltage order |
| Signal contacts composition: | 1 C/O |
| [Uc] control circuit voltage: | 12...24 V AC12...24 V DC |
| [Ie] rated operational current: | 5 A at 250 V AC0.01 A at 10 V DC |
|---|---|
| [Ui] rated insulation voltage: | 4000 V |
| Local signalling: | LED green for power ON |
| Supply holding power: | 0.22 W |
| Supply inrush power: | 0.11 W |
| Mounting mode: | Fixed |
| Mounting support: | 35 mm symmetrical DIN rail |
| 9 mm pitches: | 2 |
| Colour: | White |
| Electrical durability: | 100000 cycles |
| Connections - terminals: | Tunnel type terminals |
| Market segment: | Small commercialResidential |
| Compatibility code: | IRTBT |
| REACh Regulation: | Free of Substances of Very High Concern above the threshold |
|---|---|
| EU RoHS Directive: | Compliant |
| Mercury free: | Yes |
| RoHS exemption information: | Yes |
| China RoHS Regulation: | Product out of China RoHS scope. Substance declaration for your information |
| WEEE: | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
| Halogen content performance: | Halogen free plastic parts & cables product |
| Code EAN: | 3606480097720 |
|---|
