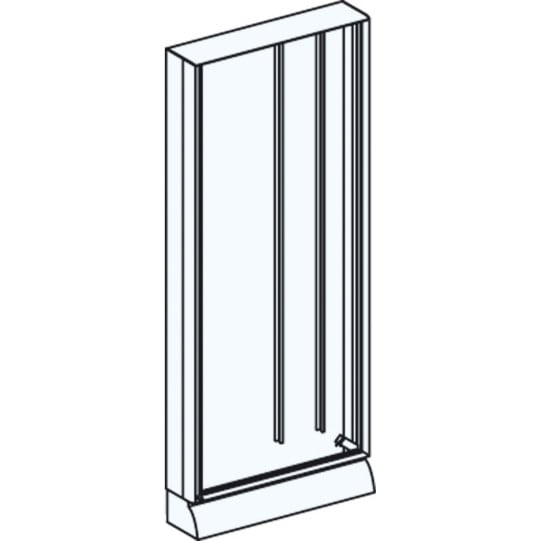

Floor-Standing Enclosure W850 36M Prisma G IP30 - 08245
DESCRIPTION
| Range: | Prisma |
|---|---|
| Range of product: | Prisma G |
| Product or component type: | Enclosure |
| Device application: | Low voltage electrical distribution |
| Enclosure type: | Functional enclosure delivered in kit form |
| Enclosure/cubicle description: | Floor-standing enclosure - width 850 mm |
| Enclosure mounting: | Surface |
| Additional information: | Can be combined side by side |
| Type of front cover: | Without to be ordered separately |
| Number of vertical modules [50 mm]: | 36 |
| Number of 18 mm modules per row: | 36 |
| Standards: | IEC 61439-2IEC 61439-1IEC 62208 |
| [Ui] rated insulation voltage: | 1000 V on main rear busbars conforming to IEC 61439-2 |
|---|---|
| Network frequency: | 50/60 Hz |
| [In] rated current: | 630 A at 40 °C conforming to IEC 61439-2 |
| [Icw] rated short-time withstand current: | 25 kA 1 s conforming to IEC 61439-2 |
| [Ipk] rated peak withstand current: | 53 kA conforming to IEC 61439-2 |
| Electrical insulation class: | Class I |
| Protective treatment: | Electrophoresis treatment and hot-polymerised polyester epoxy powder |
| Surface finish: | SmoothMatt |
| Colour: | White (RAL 9001) |
| Width: | 850 mm |
| Height: | 1980 mm with plinth: |
| Depth: | 205 mm |
| Quantity per set: | Set of 1 |
| IP degree of protection: | IP43 with door, canopy and IP43 gasketIP30 without doorIP40 with doorIP41 with door and canopy |
|---|---|
| IK degree of protection: | IK07 without door conforming to EN/IEC 62262IK08 with door |
| Mechanical robustness: | Seismic tests - 2.5G conforming to IEC 60068-2-57 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3606480908521 |
|---|
