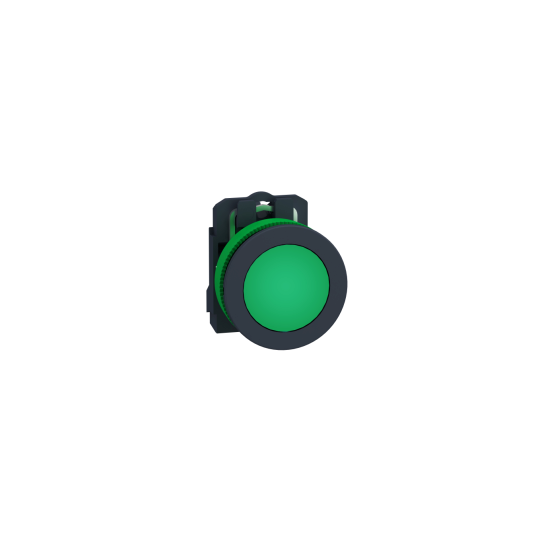

FLUSH MOUNTED Pilot light, complete, 110 120V, Green - XB5FVG3
SKU : XB5FVG3
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
FLUSH MOUNTED Pilot light, complete, 110 120V, Green - XB5FVG3
DESCRIPTION
| Range of product: | Harmony XB5 |
|---|---|
| Product or component type: | Pilot light |
| Device short name: | XB5F |
| Bezel material: | Dark grey plastic |
| Fixing collar material: | Plastic |
| Head type: | Built-in-flush |
| Mounting diameter: | 30.5 mm |
| Sale per indivisible quantity: | 1 |
| Shape of signaling unit head: | Round |
| Cap/operator or lens colour: | Green |
| Operator additional information: | With plain lens |
| Light source: | Protected LED |
| Bulb base: | Integral LED |
| Light source colour: | Green |
| [Us] rated supply voltage: | 110...120 V AC at 50/60 Hz |
| Device presentation: | Complete product |
| Height: | 42 mm |
|---|---|
| Width: | 36.6 mm |
| Depth: | 55 mm |
| Terminals description ISO n°1: | (X1-X2)PL |
| Product weight: | 0.038 kg |
| Resistance to high pressure washer: | 7000000 Pa at 55 °C, distance |
| Connections - terminals: | Screw clamp terminals, Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to EN/IEC 60947-1 |
| [Ui] rated insulation voltage: | 250 V (pollution degree 3) conforming to EN 60947-1 |
| [Uimp] rated impulse withstand voltage: | 4 kV conforming to EN 60947-1 |
| Signalling type: | Steady |
| GCR BRIDGE: | XB5FVCUST01 |
| Customizable: | No |
| Customizable: | 1 |
| Compatibility code: | XB5 |
| Supply voltage limits: | 100...132 V AC |
| Current consumption: | 14 mA |
| Service life: | 100000 h at rated voltage and 25 °C |
| Surge withstand: | 1 kV conforming to IEC 61000-4-5 |
| [Us] rated supply voltage: | 110...120 V |
| Protective treatment: | TH |
|---|---|
| Ambient air temperature for storage: | -40...70 °C |
| Ambient air temperature for operation: | -40...70 °C |
| Overvoltage category: | Class II conforming to IEC 60536 |
| IP degree of protection: | IP66 conforming to IEC 60529IP67 conforming to IEC 60529IP69 conforming to IEC 60529IP69K conforming to ISO 20653 |
| NEMA degree of protection: | NEMA 13NEMA 4X |
| IK degree of protection: | IK03 conforming to IEC 50102 |
| Standards: | JIS C8201-5-1CSA C22.2 No 14UL 508EN/IEC 60947-1EN/IEC 60947-5-4EN/IEC 60947-5-1JIS C8201-1ISO 21702ISO 22196:2011 |
| Product certifications: | UL listedCSA |
| Vibration resistance: | 5 gn (f= 12...500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance: | 50 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-2730 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Resistance to fast transients: | 2 kV conforming to IEC 61000-4-4 |
| Resistance to electromagnetic fields: | 10 V/m conforming to IEC 61000-4-3 |
| Electromagnetic compatibility: | Electrostatic discharge - test level: 6 kV (on contact (on metal parts)) conforming to IEC 61000-4-2Electrostatic discharge - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2Electromagnetic emission class B conforming to IEC 55011 |
| Resistance to electrostatic discharge: | 6 kV on contact (on metal parts) conforming to IEC 61000-4-28 kV in free air (in insulating parts) conforming to IEC 61000-4-2 |
| Electromagnetic emission: | Class B conforming to IEC 55011 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3606481360915 |
|---|
