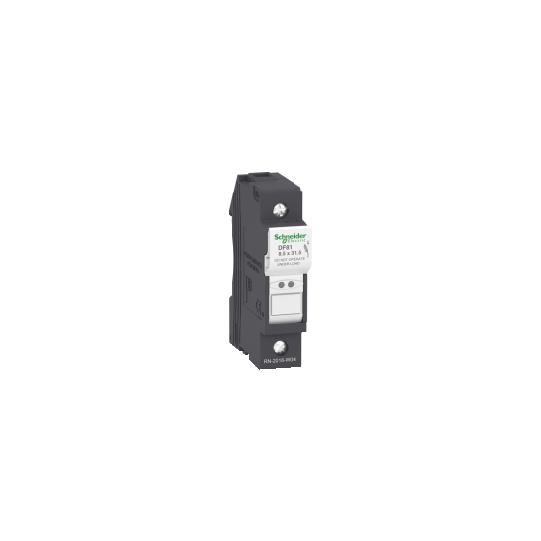

Fuse carrier TeSys DF, 1P 25A, fuse size 8.5x32 mm - DF81
SKU : DF81
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Fuse carrier TeSys DF, 1P 25A, fuse size 8.5x32 mm - DF81
DESCRIPTION
| Range of product: | TeSys fuse carriers |
|---|---|
| Range: | TeSys |
| Product name: | TeSys DF |
| Product or component type: | Fuse carrier |
| Device short name: | DF8 |
| Product compatibility: | DF2BA fuse cartridgeDF2BN fuse cartridge |
| Poles description: | 1P |
| Fuse size: | 8.3 x 31.5 mm |
| Fuse type: | , gG, aM |
| Control type: | Toggle padlockable |
| Utilisation category: | AC-20B conforming to IEC 60947-3 |
| [Ue] rated operational voltage: | 400 V AC |
| [Ie] rated operational current: | 25 A at 400 V AC |
| [Ith] conventional free air thermal current: | 25 A 20 °C |
| [Ui] rated insulation voltage: | 500 V AC |
| [Uimp] rated impulse withstand voltage: | 6 kV |
| Overvoltage category: | III |
| Short-circuit withstand: | 20 kA 400 V conforming to IEC 60947-3 |
| Power dissipation in W: | 2.5 W maximum power dissipation by fuse |
| Standards: | EN/IEC 60947-3EN/IEC 60269-2 |
|---|---|
| Product certifications: | IECEACDNV-GL |
| Mounting support: | 35 mm symmetrical DIN rail |
| Mounting position: | Vertical (tolerance: +/- 23°) |
| Connections - terminals: | Screw clamp terminals 1 cable(s) 1...16 mm²rigidScrew clamp terminals 2 cable(s) 1...6 mm²rigidScrew clamp terminals 1 cable(s) 1...16 mm²flexible with or withoutScrew clamp terminals 2 cable(s) 1...6 mm²flexible with or without |
| Tightening torque: | 2.2 N.m - with screwdriver PZ22.2 N.m - with screwdriver flat Ø 5.5 mm |
| Height: | 79.5 mm |
| Width: | 17.5 mm |
| Depth: | 61 mm |
| Product weight: | 0.042 kg |
| Quantity per set: | Set of 12 |
| Ambient air temperature for storage: | -40...70 °C |
|---|---|
| Ambient air temperature for operation: | -40...70 °C with derating above 20°C |
| Operating altitude: | 0...2000 m without derating |
| IP degree of protection: | IP20 |
| Pollution degree: | 3 |
| Fire resistance: | 960 °C conforming to IEC 60695-2-1 |
| Compatibility code: | DF8 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389119407106 |
|---|
