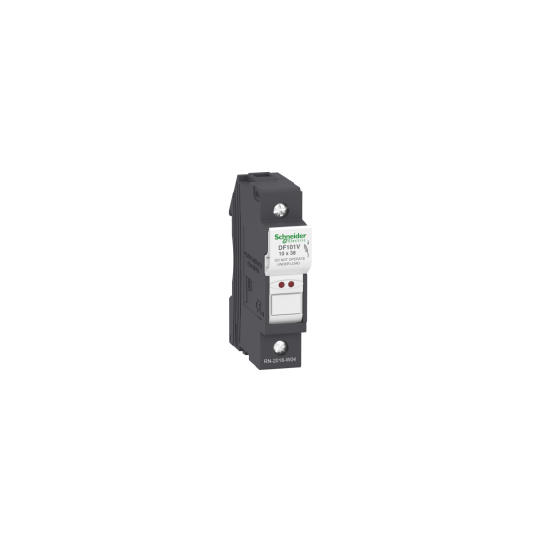

Fuse carrier TeSys DF, 1P 32A, fuse size 10x38 mm, blown fuse indicator - DF101V
SKU : DF101V
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Fuse carrier TeSys DF, 1P 32A, fuse size 10x38 mm, blown fuse indicator - DF101V
DESCRIPTION
| Range of product: | TeSys fuse carriers |
|---|---|
| Range: | TeSys |
| Product name: | TeSys DF |
| Product or component type: | Fuse carrier |
| Device short name: | DF10 |
| Product compatibility: | DF2CA fuse cartridgeDF2CN fuse cartridge |
| Poles description: | 1P |
| Fuse size: | 10 x 38 mm |
| Fuse type: | , gG, aM |
| Control type: | Toggle padlockable |
| Local signalling: | Blown fuse indication |
| Utilisation category: | AC-20B conforming to IEC 60947-3DC-20B conforming to IEC 60947-3 |
| [Ue] rated operational voltage: | 690 V AC690 V DC |
| [Ie] rated operational current: | 32 A at 400 V AC |
| [Ith] conventional free air thermal current: | 32 A 20 °C |
| [Ui] rated insulation voltage: | 690 V AC |
| [Uimp] rated impulse withstand voltage: | 6 kV |
| Overvoltage category: | III |
| Short-circuit withstand: | 120 kA 400 V conforming to IEC 60947-3120 kA 500 V conforming to IEC 60947-3 |
| Power dissipation in W: | 3 W maximum power dissipation by fuse |
| Standards: | EN/IEC 60947-3EN/IEC 60269-2UL 4248-1CSA C22.2 No 4248-1EN 45545-2: R22 HL2 |
|---|---|
| Product certifications: | IECUL recognizedCSACCCEACDNV-GL |
| Mounting support: | 35 mm symmetrical DIN rail |
| Mounting position: | Vertical (tolerance: +/- 23°) |
| Connections - terminals: | Screw clamp terminals 1 cable(s) 1...16 mm²rigidScrew clamp terminals 2 cable(s) 1...6 mm²rigidScrew clamp terminals 1 cable(s) 1...16 mm²flexible with or withoutScrew clamp terminals 2 cable(s) 1...6 mm²flexible with or without |
| Tightening torque: | 2.2 N.m - with screwdriver PZ22.2 N.m - with screwdriver flat Ø 5.5 mm |
| Height: | 79.5 mm |
| Width: | 17.5 mm |
| Depth: | 61 mm |
| Product weight: | 0.042 kg |
| Quantity per set: | Set of 12 |
| Ambient air temperature for storage: | -40...70 °C |
|---|---|
| Ambient air temperature for operation: | -40...70 °C with derating above 20°C |
| Operating altitude: | 0...2000 m |
| IP degree of protection: | IP20 |
| Pollution degree: | 3 |
| Fire resistance: | 960 °C conforming to IEC 60695-2-1 |
| Compatibility code: | DF10 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389119407298 |
|---|
