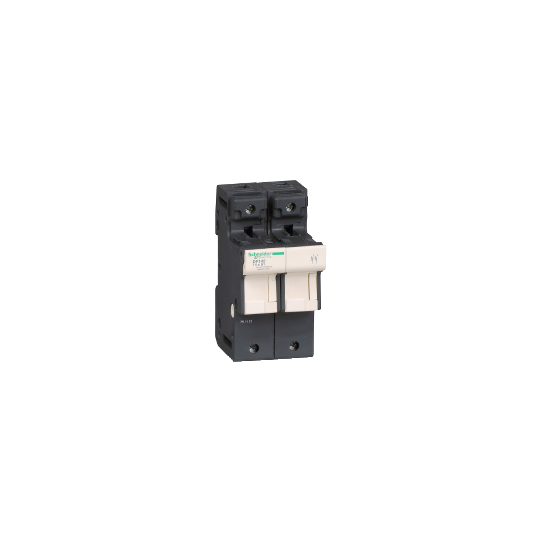

Fuse carrier TeSys DF, 2P 50A, fuse size 14x51 mm - DF142
SKU : DF142
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Fuse carrier TeSys DF, 2P 50A, fuse size 14x51 mm - DF142
DESCRIPTION
| Range of product: | TeSys fuse carriers |
|---|---|
| Range: | TeSys |
| Product name: | TeSys DF |
| Product or component type: | Fuse carrier |
| Device short name: | DF14 |
| Product compatibility: | DF2EA fuse cartridgeDF2EN fuse cartridge |
| Poles description: | 2P |
| Fuse size: | 14 x 51 mm |
| Fuse type: | , gG, aM |
| Control type: | Toggle |
| [Ue] rated operational voltage: | 690 V AC690 V DC |
| [Ie] rated operational current: | 50 A |
| [Ui] rated insulation voltage: | 690 V AC |
| [Uimp] rated impulse withstand voltage: | 8 kV |
| [Ipk] rated peak withstand current: | 15 kA with tubular links conforming to IEC 60269-1 |
| Short-circuit withstand: | 120 kA 400 V conforming to IEC 60947-3120 kA 500 V conforming to IEC 60947-380 kA 690 V conforming to IEC 60947-3 |
| Standards: | EN/IEC 60947-3EN/IEC 60269-2UL 4248-1CSA C22.2 No 4248-1 |
|---|---|
| Product certifications: | IECUL recognizedCSAEAC |
| Mounting support: | 35 mm symmetrical DIN rail |
| Mounting position: | Vertical (tolerance: +/- 23°) |
| Connections - terminals: | Screw clamp terminals 1 cable(s) 2.5...25 mm²rigidScrew clamp terminals 2 cable(s) 2.5...10 mm²rigidScrew clamp terminals 1 cable(s) 2.5...25 mm²flexible with or withoutScrew clamp terminals 2 cable(s) 2.5...10 mm²flexible with or without |
| Tightening torque: | 3.5 N.m |
| Height: | 110.8 mm |
| Width: | 52.5 mm |
| Depth: | 76.5 mm |
| Net weight: | 0.280 kg |
| Quantity per set: | Set of 3 |
| Ambient air temperature for storage: | -40...80 °C |
|---|---|
| Ambient air temperature for operation: | -20...60 °C with derating above 20°C |
| IP degree of protection: | IP20 conforming to IEC 60529 |
| Protective treatment: | TH |
| Fire resistance: | 960 °C conforming to IEC 60695-2-1 |
| Compatibility code: | DF14 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Unit Type of Package 1: | PCENumber of Units in Package 1 |
| Code EAN: | 3389119407403 |
|---|
