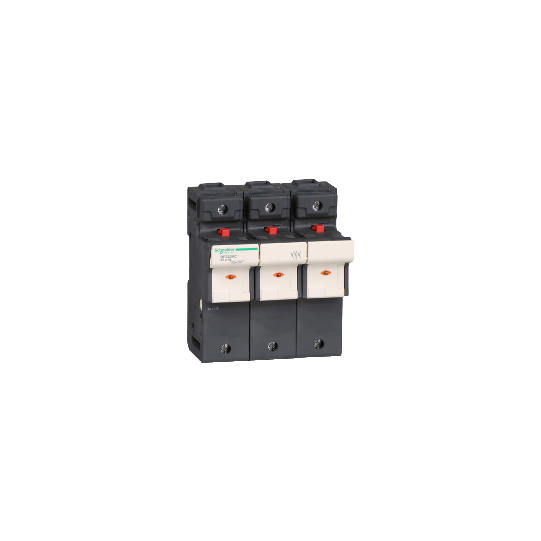

Fuse carrier TeSys DF, 3P 125A, fuse size 22x58 mm, blown fuse indicator - DF223VC
SKU : DF223VC
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Fuse carrier TeSys DF, 3P 125A, fuse size 22x58 mm, blown fuse indicator - DF223VC
DESCRIPTION
| Range of product: | TeSys fuse carriers |
|---|---|
| Range: | TeSys |
| Product name: | TeSys DF |
| Product or component type: | Fuse carrier |
| Device short name: | DF22 |
| Product compatibility: | DF3FA fuse cartridge strikerDF3FN fuse cartridge strikerDF22AM auxiliary contact block |
| Poles description: | 3P |
| Fuse size: | 22 x 58 mm |
| Fuse type: | , gG, aM |
| Control type: | Toggle |
| Local signalling: | Blown fuse indication |
| [Ue] rated operational voltage: | 690 V AC690 V DC |
| [Ie] rated operational current: | 125 A |
| [Ui] rated insulation voltage: | 690 V AC |
| [Uimp] rated impulse withstand voltage: | 8 kV |
| [Ipk] rated peak withstand current: | 19 kA with tubular links conforming to IEC 60269-1 |
| Short-circuit withstand: | 120 kA 400 V conforming to IEC 60947-3120 kA 500 V conforming to IEC 60947-380 kA 690 V conforming to IEC 60947-3 |
| Standards: | EN/IEC 60947-3EN/IEC 60269-2UL 4248-1CSA C22.2 No 4248-1 |
|---|---|
| Product certifications: | IECUL recognizedCSAEAC |
| Mounting support: | 35 mm symmetrical DIN rail |
| Mounting position: | Vertical (tolerance: +/- 23°) |
| Connections - terminals: | Screw clamp terminals 1 cable(s) 2.5...35 mm²rigidScrew clamp terminals 2 cable(s) 2.5...25 mm²rigidScrew clamp terminals 1 cable(s) 2.5...35 mm²flexible with or withoutScrew clamp terminals 2 cable(s) 2.5...25 mm²flexible with or without |
| Tightening torque: | 4 N.m |
| Height: | 127.5 mm |
| Width: | 105 mm |
| Depth: | 76.5 mm |
| Product weight: | 0.657 kg |
| Quantity per set: | Set of 2 |
| Ambient air temperature for storage: | -40...80 °C |
|---|---|
| Ambient air temperature for operation: | -20...60 °C with derating above 20°C |
| IP degree of protection: | IP20 conforming to IEC 60529 |
| Protective treatment: | TH |
| Fire resistance: | 960 °C conforming to IEC 60695-2-1 |
| Compatibility code: | DF22 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389118233430 |
|---|
