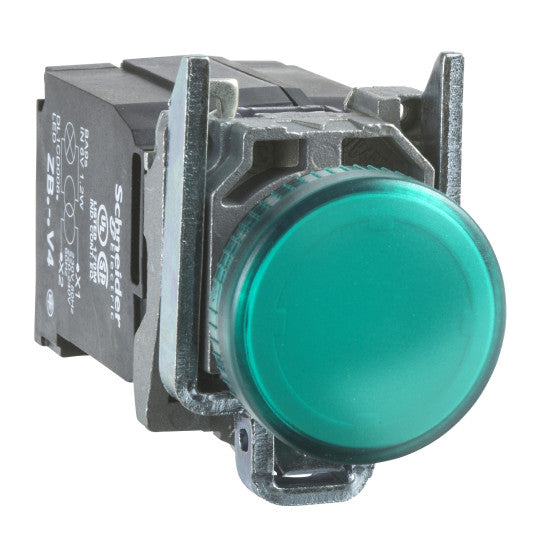

green complete pilot light Ø22 plain lens with BA9s bulb 230...240V - XB4BV43
SKU : XB4BV43
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
green complete pilot light Ø22 plain lens with BA9s bulb 230...240V - XB4BV43
DESCRIPTION
| Range of product: | Harmony XB4 |
|---|---|
| Product or component type: | Pilot light |
| Device short name: | XB4 |
| Bezel material: | Chromium plated metal |
| Fixing collar material: | Zamak |
| Head type: | Standard |
| Mounting diameter: | 22 mm |
| Sale per indivisible quantity: | 1 |
| Shape of signaling unit head: | Round |
| Cap/operator or lens colour: | Green |
| Operator additional information: | With plain lens |
| Light source: | Incandescent |
| Bulb base: | BA 9s |
| Light block supply: | Via integral transformer 1.2 VA 6 V |
| [Us] rated supply voltage: | 230...240 V AC at 50/60 Hz |
| Height: | 47 mm |
|---|---|
| Width: | 30 mm |
| Depth: | 78 mm |
| Terminals description ISO n°1: | (X1-X2)PL |
| Product weight: | 0.152 kg |
| Resistance to high pressure washer: | 7000000 Pa at 55 °C, distance |
| Connections - terminals: | Screw clamp terminals, Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to EN/IEC 60947-1 |
| [Ui] rated insulation voltage: | 600 V (pollution degree 3) conforming to EN 60947-1 |
| [Uimp] rated impulse withstand voltage: | 6 kV conforming to EN 60947-1 |
| Signalling type: | Steady |
| [Us] rated supply voltage: | 230...240 V |
| Device presentation: | Complete product |
| Customizable: | Yes |
| Customizable: | 1 |
| GCR BRIDGE: | XB4BVCUST01 |
| Compatibility code: | XB4 |
| Protective treatment: | TH |
|---|---|
| Ambient air temperature for storage: | -40...70 °C |
| Ambient air temperature for operation: | -40...55 °C |
| Electrical shock protection class: | Class I conforming to IEC 60536 |
| IP degree of protection: | IP66 conforming to IEC 60529IP67IP69IP69K |
| NEMA degree of protection: | NEMA 13NEMA 4X |
| IK degree of protection: | IK06 conforming to IEC 50102 |
| Standards: | JIS C8201-5-1EN/IEC 60947-5-1UL 508EN/IEC 60947-5-4CSA C22.2 No 14EN/IEC 60947-1EN/IEC 60947-5-5JIS C8201-1 |
| Product certifications: | UL listedCSA |
| Vibration resistance: | 5 gn (f= 12...500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance: | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-2750 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389110887266 |
|---|
