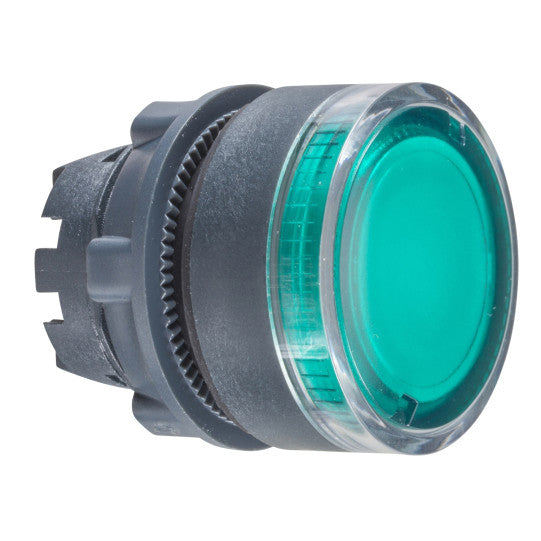

green flush illuminated pushbutton head Ø22 spring return for BA9s bulb - ZB5AW33
DESCRIPTION
| Range of product: | Harmony XB5 |
|---|---|
| Product or component type: | Head for illuminated push-button |
| Device short name: | ZB5 |
| Product compatibility: | BA 9s |
| Bezel material: | Dark grey plastic |
| Mounting diameter: | 22 mm |
| Sale per indivisible quantity: | 1 |
| Head type: | Standard |
| Shape of signaling unit head: | Round |
| Type of operator: | spring return |
| Operator profile: | Green flush, unmarked |
| Operator additional information: | With plain lens |
| CAD overall width: | 29 mm |
|---|---|
| CAD overall height: | 29 mm |
| CAD overall depth: | 32 mm |
| Product weight: | 0.018 kg |
| Resistance to high pressure washer: | 7000000 Pa at 55 °C, distance |
| Mechanical durability: | 10000000 cycles |
| Main group: | Illum push-button |
| Group of product: | Flush push BA9s |
| Station name: | XALD 1...5 cut-outsXALK 2...5 cut-outs |
| Cap/operator or lens colour: | Green |
| Marking: | Unmarked |
| Electrical composition code: | M7 for M8 for M9 for MF2 for |
| Device presentation: | Basic sub-assemblies |
| Customizable: | No |
| Customizable: | 0 |
| Compatibility code: | ZB5 |
| Protective treatment: | TC |
|---|---|
| Ambient air temperature for storage: | -40...70 °C |
| Ambient air temperature for operation: | -40...55 °C |
| Overvoltage category: | Class II conforming to IEC 60536 |
| IP degree of protection: | IP66 conforming to IEC 60529IP67IP69IP69K |
| NEMA degree of protection: | NEMA 13NEMA 4X |
| IK degree of protection: | IK05 conforming to EN 50102 |
| Product certifications: | GLDNVLROS (Lloyds register of shipping)CSABVUL listed |
| Vibration resistance: | 5 gn (f= 2...500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance: | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-2750 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389110909937 |
|---|
