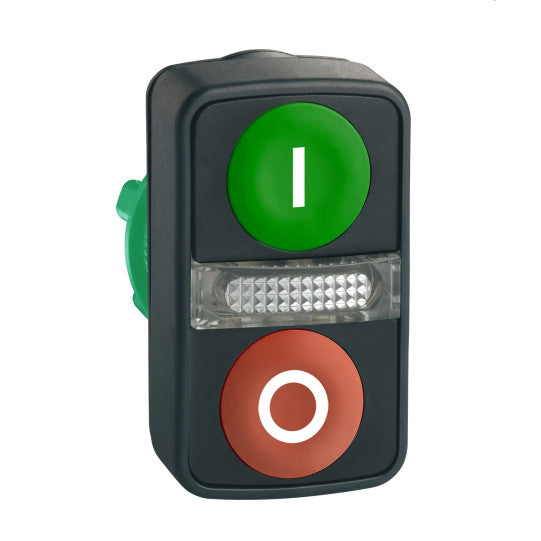

green flush/red flush illuminated double-headed pushbutton Ø22 with marking - ZB5AW7A3741
SKU : ZB5AW7A3741
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
green flush/red flush illuminated double-headed pushbutton Ø22 with marking - ZB5AW7A3741
DESCRIPTION
| Range of product: | Harmony XB5 |
|---|---|
| Product or component type: | Head for illuminated double-headed push-button |
| Product compatibility: | Integral LED |
| Device short name: | ZB5 |
| Bezel material: | Dark grey plastic |
| Head type: | Standard |
| Mounting diameter: | 22 mm |
| Sale per indivisible quantity: | 1 |
| Shape of signaling unit head: | Rectangular |
| Type of operator: | spring return |
| Operator profile: | 2 flush push-buttons - 1 central pilot light |
| Operators description: | Green ''I'' - red ''O'' |
| CAD overall width: | 30 mm |
|---|---|
| CAD overall height: | 50 mm |
| CAD overall depth: | 30 mm |
| Product weight: | 0.023 kg |
| Operator profile: | Green flush, I (white)Red flush, O (white) |
| Mechanical durability: | 1000000 cycles |
| Main group: | Illum double head |
| Group of product: | Flush/flush illum marked |
| Station name: | XALD 1 cut-out |
| Cap/operator or lens colour: | Green/red |
| Marking: | I-O |
| Colour of marking: | White/white |
| Compatibility code: | ZB5 |
| Device presentation: | Basic sub-assemblies |
| Customizable: | No |
| Customizable: | 0 |
| Electrical composition code: | M1 for M2 for M6 for M10 for MF1 for MR1 for |
| Ambient air temperature for storage: | -40...70 °C |
|---|---|
| Ambient air temperature for operation: | -25...70 °C |
| Electrical shock protection class: | Class II conforming to IEC 60536 |
| IP degree of protection: | IP66IP67IP69IP69K |
| NEMA degree of protection: | NEMA 13NEMA 4X |
| Resistance to high pressure washer: | 7000000 Pa at 55 °C, distance |
| IK degree of protection: | IK05 conforming to IEC 50102 |
| Standards: | EN/IEC 60947-5-1CSA C22.2 No 14EN/IEC 60947-1EN/IEC 60947-5-4JIS C8201-5-1UL 508JIS C8201-1 |
| Product certifications: | CSADNVUL listedBVLROS (Lloyds register of shipping)GL |
| Vibration resistance: | 5 gn (f= 2...500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance: | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-2750 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389119043366 |
|---|
