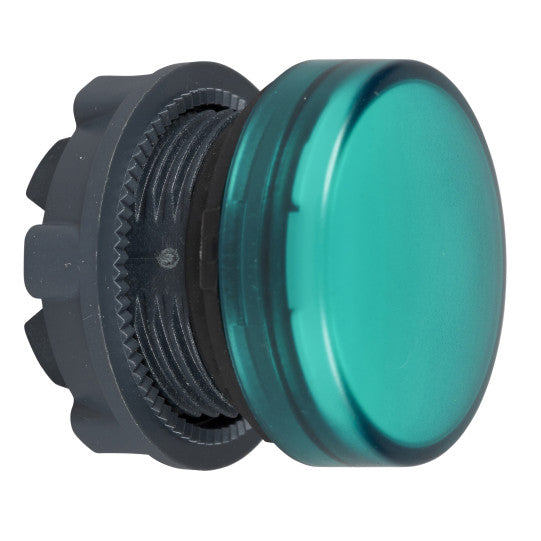

green pilot light head ø22 plain lens for integral led - ZB5AV033
SKU : ZB5AV033
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
green pilot light head ø22 plain lens for integral led - ZB5AV033
DESCRIPTION
| Range of product: | Harmony XB5 |
|---|---|
| Product or component type: | Head for pilot light |
| Product compatibility: | Integral LED |
| Device short name: | ZB5 |
| Bezel material: | Dark grey plastic |
| Mounting diameter: | 22 mm |
| Head type: | Standard |
| Sale per indivisible quantity: | 1 |
| Shape of signaling unit head: | Round |
| Cap/operator or lens colour: | Green |
| Operator additional information: | With plain lens |
| CAD overall width: | 29 mm |
|---|---|
| CAD overall height: | 29 mm |
| CAD overall depth: | 31 mm |
| Product weight: | 0.017 kg |
| Main group: | Pilot light |
| Group of product: | Lens fitted integral LED |
| Station name: | XALD 1...5 cut-outsXALK 2...5 cut-outs |
| Cap/operator or lens colour: | Green |
| Electrical composition code: | P1 in front mounting with integral LEDP2 in front mounting with integral LED and transformerPF1 in front mounting with integral LEDPR1 in rear mounting with integral LED |
| Device presentation: | Basic element |
| Customizable: | No |
| Customizable: | 1 |
| GCR BRIDGE: | ZB5AVCUST01 |
| Compatibility code: | ZB5 |
| Protective treatment: | TH |
|---|---|
| Ambient air temperature for storage: | -40...70 °C |
| Ambient air temperature for operation: | -40...70 °C |
| Overvoltage category: | Class II conforming to IEC 60536 |
| IP degree of protection: | IP66 conforming to IEC 60529IP67 conforming to IEC 60529IP69 conforming to IEC 60529IP69K conforming to ISO 20653 |
| NEMA degree of protection: | NEMA 13NEMA 4X |
| Resistance to high pressure washer: | 7000000 Pa at 55 °C, distance |
| IK degree of protection: | IK05 conforming to IEC 50102 |
| Standards: | CSA C22.2 No 14EN/IEC 60947-5-5EN/IEC 60947-1EN/IEC 60947-5-4JIS C8201-5-1EN/IEC 60947-5-1UL 508JIS C8201-1 |
| Vibration resistance: | 5 gn (f= 2...500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance: | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-2750 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389110908084 |
|---|
