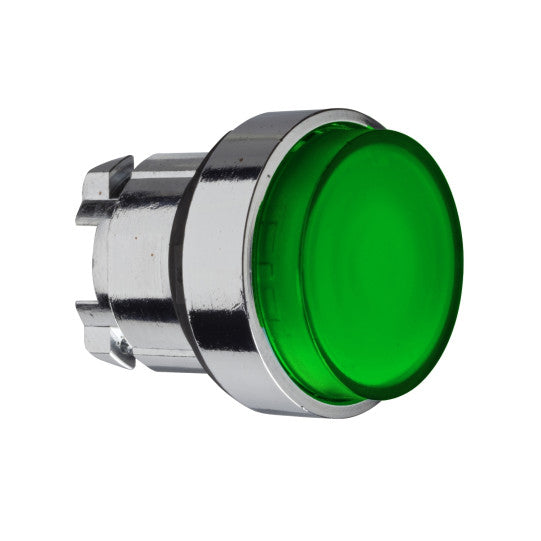

green projecting illuminated pushbutton head Ø22 push-push for integral LED - ZB4BH33
SKU : ZB4BH33
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
green projecting illuminated pushbutton head Ø22 push-push for integral LED - ZB4BH33
DESCRIPTION
| Range of product: | Harmony XB4 |
|---|---|
| Product or component type: | Head for illuminated push-button |
| Product compatibility: | Integral LED |
| Device short name: | ZB4 |
| Bezel material: | Chromium plated metal |
| Head type: | Standard |
| Mounting diameter: | 22 mm |
| Sale per indivisible quantity: | 1 |
| Shape of signaling unit head: | Round |
| Type of operator: | push-push |
| Operator profile: | Green projecting, unmarked |
| CAD overall width: | 29 mm |
|---|---|
| CAD overall height: | 29 mm |
| CAD overall depth: | 33 mm |
| Product weight: | 0.026 kg |
| Resistance to high pressure washer: | 7000000 Pa at 55 °C, distance |
| Mechanical durability: | 500000 cycles |
| Electrical composition code: | M5 for M6 for M10 for |
| Main group: | Illum push-button |
| Group of product: | Projected push-push illum LED |
| Cap/operator or lens colour: | Green |
| Marking: | Unmarked |
| Device presentation: | Basic element |
| Customizable: | Yes |
| Customizable: | 1 |
| GCR BRIDGE: | ZB4BHCUST04 |
| Compatibility code: | ZB4 |
| Protective treatment: | TH |
|---|---|
| Ambient air temperature for storage: | -40...70 °C |
| Electrical shock protection class: | Class I conforming to IEC 60536 |
| Ambient air temperature for operation: | -40...70 °C |
| Overvoltage category: | Class I conforming to IEC 60536 |
| IP degree of protection: | IP69IP69KIP67 conforming to IEC 60529 |
| NEMA degree of protection: | NEMA 13NEMA 4X |
| IK degree of protection: | IK05 conforming to IEC 50102 |
| Standards: | EN/IEC 60947-5-4CSA C22.2 No 14JIS C8201-5-1EN/IEC 60947-1UL 508EN/IEC 60947-5-1EN/IEC 60947-5-5JIS C8201-1 |
| Product certifications: | DNVGLUL listedLROS (Lloyds register of shipping)CSABV |
| Vibration resistance: | 5 gn (f= 2...500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance: | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-2750 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389110890389 |
|---|
