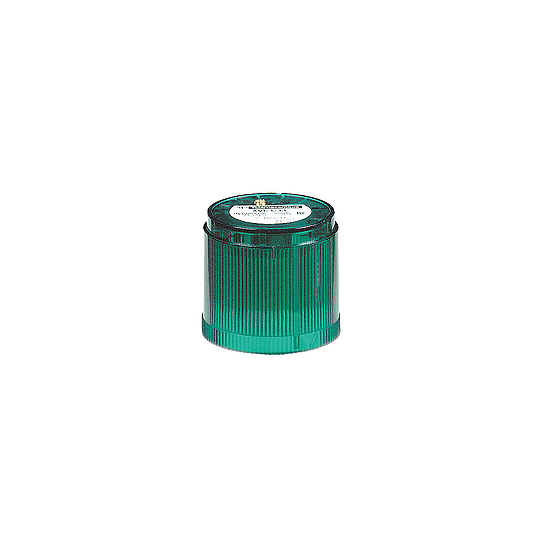

GREEN STEADY LENS INTEGRAL LED 24VAC/DC - XVEC2B3
SKU : XVEC2B3
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
GREEN STEADY LENS INTEGRAL LED 24VAC/DC - XVEC2B3
DESCRIPTION
| Range of product: | Harmony XVE Optimum |
|---|---|
| Product or component type: | Indicator bank |
| Beacon or indicator bank unit type: | Illuminated unit |
| Signalling type: | Steady |
| Component name: | XVE |
| Light source: | Integral LED, green |
| Bulb type: | LED |
| [Us] rated supply voltage: | 24 V AC/DC |
| Mounting diameter: | 70 mm |
|---|---|
| Assembly style: | Customer assembly |
| Connections - terminals: | Screw clamp terminals, |
| Marking: | CE |
| Short-circuit protection: | 0.63 A |
| [Ui] rated insulation voltage: | 250 V conforming to IEC 60947-1 |
| Nominal voltage limit: | 0.85...1.1 Un conforming to IEC 60947-5-1 |
| Current consumption: | |
| [Uimp] rated impulse withstand voltage: | 4 kV conforming to IEC 60947-1 |
| Luminance: | 800 cd/m² |
| CAD overall width: | 70 mm |
| CAD overall height: | 52 mm |
| CAD overall depth: | 70 mm |
| Product weight: | 0.077 kg |
| Standards: | EN/IEC 60947-1EN/IEC 60947-5-1 |
|---|---|
| Product certifications: | ULCSACCC |
| Ambient air temperature for storage: | -40...70 °C |
| Ambient air temperature for operation: | -25...55 °C |
| Electrical shock protection class: | Class I aluminium tube mounting conforming to IEC 61140Class I plastic tube mounting conforming to IEC 61140 |
| Protective treatment: | TC |
| IP degree of protection: | IP40 any position except vertical position conforming to IEC 60529IP42 vertical position conforming to IEC 60529 |
| Substitution_texte: | Produit obsolète. |
|---|
