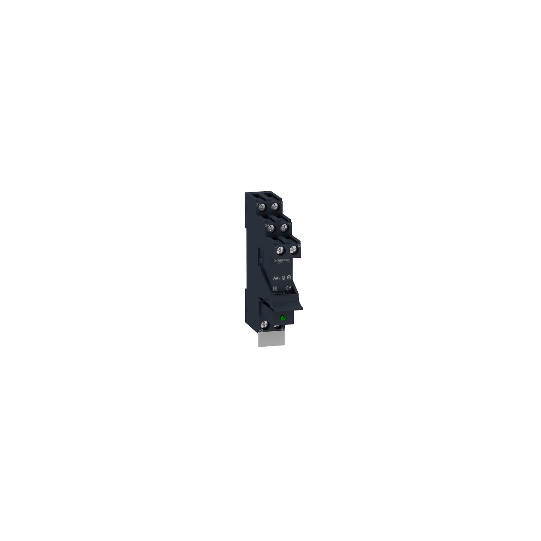

Harmony, Interface plug-in relay pre-assembled, 8 A, 2 CO, with LED, with protection circuit, 24 V DC - RSB2A080BDPV
SKU : RSB2A080BDPV
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Harmony, Interface plug-in relay pre-assembled, 8 A, 2 CO, with LED, with protection circuit, 24 V DC - RSB2A080BDPV
DESCRIPTION
| Range of product: | Harmony Electromechanical Relays |
|---|---|
| Series name: | Interface relay |
| Product or component type: | Pre-assembled plug-in relay with socket |
| Device short name: | RSB |
| Contacts type and composition: | 2 C/O |
| Contact operation: | Standard |
| [Uc] control circuit voltage: | 24 V DC |
| [Ithe] conventional enclosed thermal current: | 8 A at -40...40 °C |
| Status LED: | 1 LED |
| Control type: | Without |
| [Uc] control circuit voltage: | 230 V |
| [In] rated current: | 8 A |
| Connections - terminals: | Screw connectors |
| Average resistance: | 1440 Ohm network: DC at 20 °C +/- 15 % |
|---|---|
| [Ue] rated operational voltage: | 19.2...26.4 V DC |
| [Ui] rated insulation voltage: | 400 V conforming to EN/IEC 60947 |
| [Uimp] rated impulse withstand voltage: | 3.6 kV conforming to IEC 61000-4-5 |
| Contacts material: | Silver alloy (AgNi) |
| [Ie] rated operational current: | 4 A (AC-1/DC-1) NC conforming to IEC8 A (AC-1/DC-1) NO conforming to IEC |
| Minimum switching current: | 10 mA |
| Maximum switching voltage: | 300 V DC conforming to IEC |
| Switching voltage: | 12 V |
| Maximum switching capacity: | 2000 VA AC224 W DC |
| Load current: | 8 A at 250 V AC8 A at 28 V DC |
| Minimum switching capacity: | 120 mW at 10 mA, 12 V |
| Operating rate: | |
| Mechanical durability: | 30000000 cycles |
| Electrical durability: | 100000 cycles, 8 A at 250 V, AC-1 NO100000 cycles, 4 A at 250 V, AC-1 NC |
| Operating time: | 20 ms operating20 ms reset |
| Average coil consumption: | 0.45 W DC |
| Drop-out voltage threshold: | >= 0.1 Uc DC |
| Safety reliability data: | B10d = 100000 |
| Protection category: | RT I |
| Test levels: | Level A group mounting |
| Operating position: | Any position |
| Torque value: | 0.8 N.m0.79 N.m |
| Connections - terminals: | Connector, 1 x 0.25...1 x 2.5 mm² (AWG 22...AWG 14) flexible with cable endConnector, 2 x 0.25...2 x 1 mm² (AWG 22...AWG 17) flexible with cable endConnector, 1 x 0.5...1 x 2.5 mm² (AWG 20...AWG 14) solid without cable endConnector, 2 x 0.5...2 x 1.5 mm² (AWG 20...AWG 16) solid without cable end |
| Net weight: | 0.057 kg |
| Sale per indivisible quantity: | 30 |
| Device presentation: | Complete product |
| Compatibility code: | RSB |
| Dielectric strength: | 1000 V AC between contacts2500 V AC between poles5000 V AC between coil and contact |
|---|---|
| Standards: | EN/IEC 61810-1CSA C22.2 No 14UL 508IEC 61984 |
| Product certifications: | CEULCSAEAC |
| Ambient air temperature for storage: | -40...85 °C |
| Vibration resistance: | +/- 1 mm (f= 10...55 Hz) conforming to EN/IEC 60068-2-6 |
| IP degree of protection: | IP20 conforming to EN/IEC 60529 |
| Shock resistance: | 10 gn (duration = 11 ms) for not operating conforming to EN/IEC 60068-2-275 gn (duration = 11 ms) for in operation conforming to EN/IEC 60068-2-27 |
| Ambient air temperature for operation: | -40...85 °C (DC) |
| EU RoHS Directive: | Pro-active compliance (Product out of EU RoHS legal scope)Toxic heavy metal free |
| Unit Type of Package 1: | PCENumber of Units in Package 1 |
| Code EAN: | 3606489562755 |
|---|
