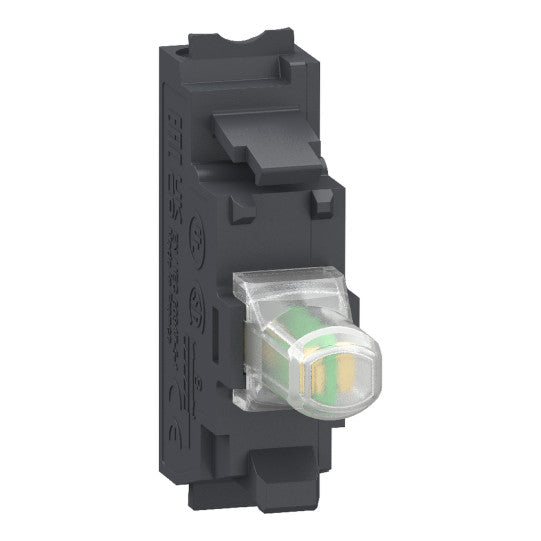

Harmony light block - Ø22 - Integrated universal LED - 24V - push-in connection - ZBVB15
SKU : ZBVB15
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Harmony light block - Ø22 - Integrated universal LED - 24V - push-in connection - ZBVB15
DESCRIPTION
| Product range | Harmony XB4 / Harmony XB5 |
| Product or component type | Illuminated block |
| Device short name | ZBV |
| Sold in lots of | 5 |
| Connection type | Push-in, ≤ 2 x 1.5 mm² with ferrule (IEC 60947-1) Push-in, ≥ 1 x 0.34 mm² without ferrule (IEC 60947-1) |
| Signalling type | Maintained |
| Light source | Universal LED |
| Bulb base | Integrated LED |
| Light block supply | Direct |
| Light source colour | White |
| [Us] rated supply voltage | 24 V AC/DC at 50/60 Hz |
| CAD overall width | 35.6 mm |
| CAD overall height | 14.8 mm |
| CAD overall depth | 9.8 mm |
| Product weight | 0.005 kg |
| Voltage limits | 20.4…26.4 V DC 20.4…26.4 V AC |
| Power consumption | 15 mA |
| Lifespan | 100,000 h at rated voltage and 25°C |
| Surge withstand | 1 kV (IEC 61000-4-5) |
| Block mounting | Front mounting |
| Product presentation | Basic element |
| Protective treatment | TH |
| Storage ambient temperature | -40…70 °C |
| Operating ambient temperature | -40…70 °C |
| Degree of protection (IP) | IP20 (IEC 60529) |
| Standards | IEC 60947-1 IEC 60947-5-1 IEC 60947-5-4 IEC 60947-5-5 UL 60947-1 UL 60947-5-1 UL 60947-5-5 UL 1059 UL 486E CSA C22.2 No 60947-1 CSA C22.2 No 60947-5-1 CSA C22.2 No 158 CSA C22.2 No 65 IACS E10 |
| Product certifications | EAC CEIEE CB Scheme CCC UL CSA |
| Fast transient immunity | 2 kV (IEC 61000-4-4) |
| Radiated electromagnetic field immunity | 10 V/m (IEC 61000-4-3) |
| Electrostatic discharge immunity | 4 kV contact discharge (metal part) (IEC 61000-4-2) 8 kV air discharge (insulated parts) (IEC 61000-4-2) |
| Electromagnetic emission | Class B (IEC 55011) |
| [Us] rated supply voltage | 24 V |
| Code EAN: | 3389119037495 |
|---|
