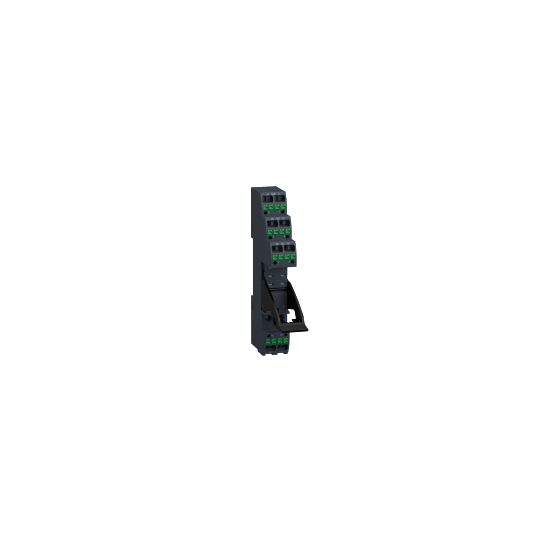

Harmony, Push-in socket, for RXG2 relays, 5 A, spring clamp terminals, separate contact - RGZE08P
DESCRIPTION
| Range of product: | Harmony Electromechanical Relays |
|---|---|
| Product or component type: | Socket |
| Contact terminal arrangement: | Separate |
| Device short name: | RGZ |
| Contacts type and composition: | 2 C/O |
| Connections - terminals: | Push-in terminals |
| Product compatibility: | Plug-in relay RXG with 2 C/O contact |
|---|---|
| Shape of pin: | Flat |
| [Ui] rated insulation voltage: | 250 V |
| [Uimp] rated impulse withstand voltage: | 6 kV between coil and contact with reinforced insulation4 kV between contacts with basic insulation4 kV between poles with basic insulation4 kV between terminals and DIN rail with basic insulation |
| [In] rated current: | 5 A |
| [Ue] rated operational voltage: | 250 V conforming to IEC300 V conforming to UL |
| Dielectric strength: | 5 kV between coil and contact with reinforced insulation2.5 kV between contacts with basic insulation3 kV between poles with basic insulation3 kV between terminals and DIN rail with basic insulation |
| Connections - terminals: | Spring clamp terminals (push 'n stay), 1 x 0.5...1 x 1.5 mm² (AWG 20...AWG 16) flexible with cable endSpring clamp terminals (push 'n stay), 1 x 0.5...1 x 1.5 mm² (AWG 20...AWG 16) solid without cable end |
| Fixing mode: | Clip-on (35 mm symmetrical DIN rail) |
| Length: | 98 mm |
| Width: | 16 mm |
| Height: | 67 mm |
| Net weight: | 0.042 kg |
| Ambient air temperature for storage: | -40...85 °C |
|---|---|
| Ambient air temperature for operation: | -40...70 °C |
| Standards: | IEC 61984 |
| Product certifications: | CSAULEACDNV-GL |
| Marking: | CE |
| IP degree of protection: | IP20 |
| Overvoltage category: | III |
| Pollution degree: | 3 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Unit Type of Package 1: | PCENumber of Units in Package 1 |
| Code EAN: | 3606481465726 |
|---|
