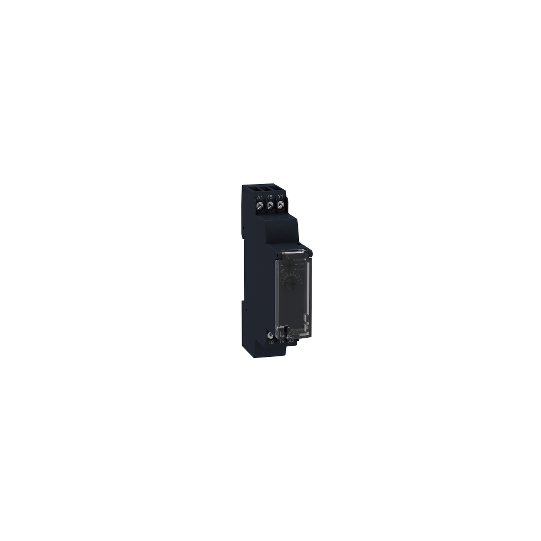

Harmony Time RE17 - Modular time relay - 0.7 A, 1 CO, 1 s..100 h, on delay, solid state output, 24..240 V AC/DC - RE17LAMW
SKU : RE17LAMW
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Harmony Time RE17 - Modular time relay - 0.7 A, 1 CO, 1 s..100 h, on delay, solid state output, 24..240 V AC/DC - RE17LAMW
DESCRIPTION
| Range of product: | Harmony Timer Relays |
|---|---|
| Product or component type: | Single function relay |
| Discrete output type: | Solid state |
| Width: | 17.5 mm |
| Component name: | RE17L |
| Time delay type: | Power on-delay |
| Time delay range: | 1...10 s10...100 h6...60 s0.1...1 s1...10 min6...60 min1...10 h |
| Nominal output current: | 0.7 A |
| [Uc] control circuit voltage: | 24...240 V |
| Connections - terminals: | Screw connectors |
| Output type: | Solid state |
| [In] rated current: | 0.7 A |
| Control type: | Selector switch front panel |
|---|---|
| [Us] rated supply voltage: | 24...240 V AC/DC 50/60 Hz |
| Voltage range: | 0.85...1.1 Us |
| Supply frequency: | 50...60 Hz +/- 5 % |
| Impulse duration: | 0.05 s typical |
| Insulation resistance: | 100 MOhm at 500 V DC conforming to IEC 60664-1 |
| [Uimp] rated impulse withstand voltage: | 5 kV during 1.2/50 µs |
| Maximum delay response: | 100 ms |
| Connections - terminals: | Screw terminals, 1 x 0.5...1 x 3.3 mm² (AWG 20...AWG 12) solid without cable endScrew terminals, 2 x 0.5...2 x 2.5 mm² (AWG 20...AWG 14) solid without cable endScrew terminals, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable endScrew terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) flexible with cable end |
| Tightening torque: | 0.6...1 N.m conforming to IEC 60947-1 |
| Dielectric strength: | 2.5 kV 1 mA/1 minute 50 Hz conforming to IEC 61812-1 |
| Housing material: | Self-extinguishing |
| Repeat accuracy: | +/- 0.5 % conforming to IEC 61812-1 |
| Temperature drift: | +/- 0.05 %/°C |
| Voltage drift: | +/- 0.2 %/V |
| Setting accuracy of time delay: | +/- 10 % of full scale at 25 °C conforming to IEC 61812-1 |
| Reset time: | 350 ms on de-energisation typical |
| On-load factor: | 100 % |
| Power consumption in VA: | 0...3 VA at 240 V AC |
| Maximum power consumption in W: | 1.5 W at 240 V DC |
| Breaking capacity: | 0.5 A AC/DC conforming to UL0.7 A AC/DC at 20 °C |
| Operating rate in Hz: | 10 Hz |
| Maximum output current: | 20 A |
| Minimum switching current: | 10 mA |
| Maximum leakage current: | 5 mA |
| Maximum switching voltage: | 250 V AC/DC |
| Maximum voltage drop: | |
| Electrical durability: | 100000000 cycles |
| Marking: | CE |
| Creepage distance: | 4 kV/3 conforming to IEC 60664-1 |
| Safety reliability data: | MTTFd = 353.8 yearsB10d = 320000 |
| Mounting position: | Any position in relation to normal vertical mounting plane |
| Mounting support: | 35 mm DIN rail conforming to EN/IEC 60715 |
| Product weight: | 0.068 kg |
| Time delay type: | A |
| Functionality: | On-delay timing |
| Compatibility code: | RE17 |
| Immunity to microbreaks: | 20 ms |
|---|---|
| Derating factor: | 5 mA/°C |
| Standards: | 2004/108/ECEN 61000-6-12006/95/ECEN 61000-6-3EN 61000-6-2IEC 61812-1EN 61000-6-4 |
| Product certifications: | GLCSAcULus |
| Ambient air temperature for storage: | -30...60 °C |
| Ambient air temperature for operation: | -20...60 °C |
| IP degree of protection: | IP20 (terminal block) conforming to IEC 60529IP40 (housing) conforming to IEC 60529IP50 (front panel) conforming to IEC 60529 |
| Vibration resistance: | 20 m/s² (f= 10...150 Hz) conforming to IEC 60068-2-6 |
| Shock resistance: | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| Relative humidity: | 93 % without condensation conforming to IEC 60068-2-30 |
| Electromagnetic compatibility: | Electrostatic discharge immunity test: (in contact), level 3, 6 kV, conforming to IEC 61000-4-2Electrostatic discharge immunity test: (in air), level 3, 8 kV, conforming to IEC 61000-4-2Susceptibility to electromagnetic fields: (80 MHz to 1 GHz), level 3, 10 V/m, conforming to IEC 61000-4-3Electrical fast transient/burst immunity test: (capacitive connecting clip), level 3, 1 kV, conforming to IEC 61000-4-4Electrical fast transient/burst immunity test: (direct), level 3, 2 kV, conforming to IEC 61000-4-41.2/50 µs shock waves immunity test: (differential mode), level 3, 1 kV, conforming to IEC 61000-4-51.2/50 µs shock waves immunity test: (common mode), level 3, 2 kV, conforming to IEC 61000-4-5Conducted RF disturbances: (0.15...80 MHz), level 3, 10 V, conforming to IEC 61000-4-6Voltage dips and interruptions immunity test: (1 cycle), 0 %, conforming to IEC 61000-4-11Voltage dips and interruptions immunity test: (25/30 cycles), 70 %, conforming to IEC 61000-4-11Conducted and radiated emissions: , class B, conforming to EN 55022 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3606480552625 |
|---|
