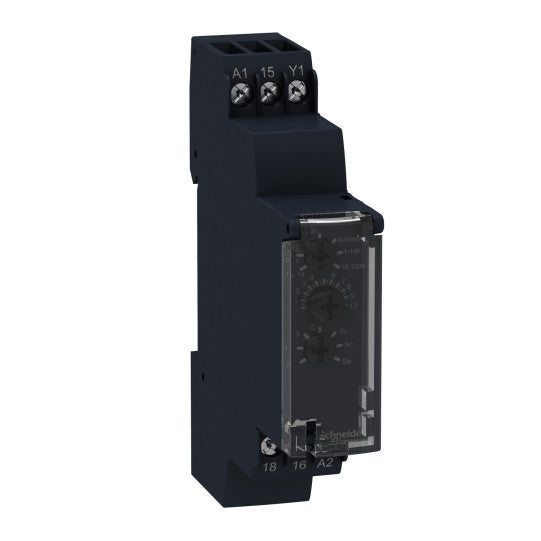

Harmony Time RE17 - Modular time relay - 10 functions - 1 s..100 h - 24..240 V AC - 1 OC - RE17RMMU
SKU : RE17RMMU
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Harmony Time RE17 - Modular time relay - 10 functions - 1 s..100 h - 24..240 V AC - 1 OC - RE17RMMU
DESCRIPTION
| Range of product: | Harmony Timer Relays |
|---|---|
| Product or component type: | Multifunction relay |
| Discrete output type: | Relay |
| Width: | 17.5 mm |
| Device short name: | RE17R |
| Time delay type: | Power on-delayOn-delay and off-delayIntervalOff-delaySymmetrical flashing |
| Time delay range: | 6...60 min1...10 h0.1...1 s1...10 s1...10 min10...100 h6...60 s |
| Nominal output current: | 8 A |
| [Uc] control circuit voltage: | 24 V24...240 V |
| Connections - terminals: | Screw connectors |
| [In] rated current: | 5 A |
| Output type: | Relay |
| Contacts type and composition: | 1 C/O |
|---|---|
| Contacts material: | Cadmium free |
| Height: | 90 mm |
| Depth: | 72 mm |
| Control type: | Selector switch front panel |
| [Us] rated supply voltage: | 24...240 V AC 50/60 Hz24 V DC |
| Voltage range: | 0.85...1.1 Us |
| Supply frequency: | 50...60 Hz +/- 5 % |
| Input voltage: | 10 V |
| Connections - terminals: | Screw terminals, 1 x 0.5...1 x 3.3 mm² (AWG 20...AWG 12) solid without cable endScrew terminals, 2 x 0.5...2 x 2.5 mm² (AWG 20...AWG 14) solid without cable endScrew terminals, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable endScrew terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) flexible with cable end |
| Tightening torque: | 0.6...1 N.m conforming to IEC 60947-1 |
| Housing material: | Self-extinguishing |
| Repeat accuracy: | +/- 0.5 % conforming to IEC 61812-1 |
| Temperature drift: | +/- 0.05 %/°C |
| Voltage drift: | +/- 0.2 %/V |
| Setting accuracy of time delay: | +/- 10 % of full scale at 25 °C conforming to IEC 61812-1 |
| Impulse duration: | 100 ms with load in parallel typical30 ms typical |
| Insulation resistance: | 100 MOhm at 500 V DC conforming to IEC 60664-1 |
| Reset time: | 120 ms on de-energisation typical |
| On-load factor: | 100 % |
| Power consumption in VA: | 0...32 VA at 240 V AC |
| Maximum power consumption in W: | 0.6 W at 24 V DC |
| Minimum switching current: | 10 mA at 5 V DC |
| Maximum switching current: | 8 A AC/DC |
| Maximum switching voltage: | 250 V AC |
| Breaking capacity: | 2000 VA |
| Operating rate in Hz: | 10 Hz |
| Electrical durability: | 100000 cycles (8 A at 250 V AC maximum) for resistive load |
| Mechanical durability: | 10000000 cycles |
| Dielectric strength: | 2.5 kV 1 mA/1 minute 50 Hz conforming to IEC 61812-1 |
| [Uimp] rated impulse withstand voltage: | 5 kV during 1.2/50 µs |
| Maximum delay response: | 100 ms |
| Marking: | CE |
| Creepage distance: | 4 kV/3 conforming to IEC 60664-1 |
| Safety reliability data: | B10d = 270000MTTFd = 296.8 years |
| Mounting position: | Any position in relation to normal vertical mounting plane |
| Mounting support: | 35 mm DIN rail conforming to EN/IEC 60715 |
| Local signalling: | LED indicator for on steady: relay energised, no timing in progressLED indicator for flashing: timing in progress 80 % ON and 20 % OFFLED indicator for pulsing: relay de-energised, no timing in progress (except function Di-D, Li-L) 5 % ON and 95 % OFF |
| Product weight: | 0.07 kg |
| Time delay type: | A, Ac, At, B, Bw, C, D, Di, H, Ht |
| Functionality: | Multifunction |
| Compatibility code: | RE17 |
| Immunity to microbreaks: | 20 ms |
|---|---|
| Standards: | 2006/95/EC2004/108/ECIEC 61812-1EN 61000-6-2EN 61000-6-3EN 61000-6-4EN 61000-6-1 |
| Product certifications: | CSAGLcULus |
| Ambient air temperature for storage: | -30...60 °C |
| Ambient air temperature for operation: | -20...60 °C |
| IP degree of protection: | IP20 (terminal block) conforming to IEC 60529IP40 (housing) conforming to IEC 60529IP50 (front panel) conforming to IEC 60529 |
| Vibration resistance: | 20 m/s² (f= 10...150 Hz) conforming to IEC 60068-2-6 |
| Shock resistance: | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| Relative humidity: | 93 % without condensation conforming to IEC 60068-2-30 |
| Electromagnetic compatibility: | Electrostatic discharge immunity test: (in contact), level 3, 6 kV, conforming to IEC 61000-4-2Electrostatic discharge immunity test: (in air), level 3, 8 kV, conforming to IEC 61000-4-2Susceptibility to electromagnetic fields: (80 MHz to 1 GHz), level 3, 10 V/m, conforming to IEC 61000-4-3Electrical fast transient/burst immunity test: (capacitive connecting clip), level 3, 1 kV, conforming to IEC 61000-4-4Electrical fast transient/burst immunity test: (direct), level 3, 2 kV, conforming to IEC 61000-4-41.2/50 µs shock waves immunity test: (differential mode), level 3, 1 kV, conforming to IEC 61000-4-51.2/50 µs shock waves immunity test: (common mode), level 3, 2 kV, conforming to IEC 61000-4-5Conducted RF disturbances: (0.15...80 MHz), level 3, 10 V, conforming to IEC 61000-4-6Voltage dips and interruptions immunity test: (1 cycle), 0 %, conforming to IEC 61000-4-11Voltage dips and interruptions immunity test: (25/30 cycles), 70 %, conforming to IEC 61000-4-11Conducted and radiated emissions: , class B, conforming to EN 55022 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3606480552755 |
|---|
