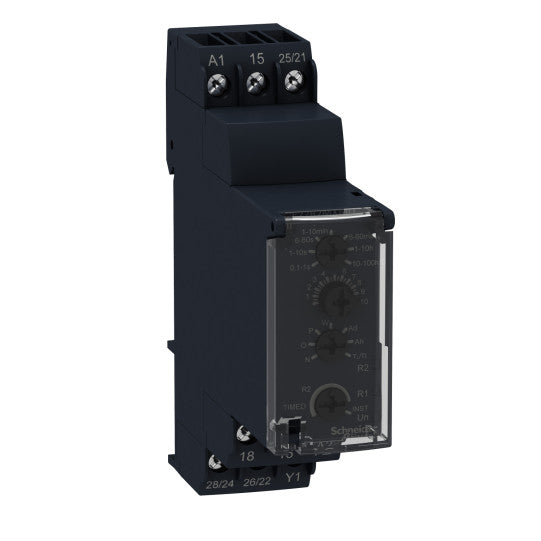

Harmony Time RE22 - Multifunction Timer Relay - 12..240 V AC/DC - 2 C/O - RE22R2MMW
SKU : RE22R2MMW
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Harmony Time RE22 - Multifunction Timer Relay - 12..240 V AC/DC - 2 C/O - RE22R2MMW
DESCRIPTION
| Range of product: | Harmony Timer Relays |
|---|---|
| Product or component type: | Multifunction relay |
| Discrete output type: | Relay |
| Device short name: | RE22 |
| Nominal output current: | 8 A |
| [Uc] control circuit voltage: | 12...240 V |
| Contacts type and composition: | 2 C/O |
| Connections - terminals: | Screw connectors |
| [In] rated current: | 5 A |
| Output type: | Relay |
| Contacts type and composition: | 1 C/O timed contact1 C/O timed or instantaneous contact |
|---|---|
| Time delay type: | Power on-delayOn-delay and off-delayIntervalOff-delaySymmetrical flashing |
| Time delay range: | 0.1...1 s6...60 s1...10 h1...10 min1...10 s10...100 h6...60 min |
| Control type: | Rotary knob front panel |
| [Us] rated supply voltage: | 12...240 V AC/DC |
| Voltage range: | 0.85...1.1 Us |
| Supply frequency: | 50...60 Hz +/- 5 % |
| Connections - terminals: | Screw terminals, 2 x 1.5 mm² with cable endScrew terminals, 2 x 2.5 mm² without cable end |
| Tightening torque: | 0.6...1 N.m conforming to IEC 60947-1 |
| Housing material: | Self-extinguishing |
| Repeat accuracy: | +/- 0.5 % conforming to IEC 61812-1 |
| Temperature drift: | +/- 0.05 %/°C |
| Voltage drift: | +/- 0.2 %/V |
| Setting accuracy of time delay: | +/- 10 % of full scale at 25 °C conforming to IEC 61812-1 |
| Minimum pulse duration: | 30 ms100 ms under load |
| Insulation resistance: | 100 MOhm at 500 V DC conforming to IEC 60664-1 |
| Reset time: | 120 ms on de-energisation |
| Immunity to microbreaks: | 10 ms |
| Power consumption in VA: | 3 VA at 240 V AC |
| Power consumption in W: | 1.5 W at 240 V DC |
| Breaking capacity: | 2000 VA |
| Minimum switching current: | 10 mA at 5 V |
| Maximum switching current: | 8 A |
| Maximum switching voltage: | 250 V |
| Electrical durability: | 100000 cycles for resistive load, 8 A at 250 V, AC |
| Mechanical durability: | 10000000 cycles |
| [Uimp] rated impulse withstand voltage: | 5 kV for 1.2...50 µs conforming to IEC 60664-15 kV conforming to IEC 61812-1 |
| Maximum delay response: | 100 ms |
| Safety reliability data: | B10d = 230000MTTFd = 251.1 years |
| Mounting position: | Any position in relation to normal vertical mounting plane |
| Mounting support: | 35 mm DIN rail conforming to EN/IEC 60715 |
| Status LED: | LED green (flashing) for timing in progressLED green (steady) for power ONLED yellow for relay energised |
| Width: | 22.5 mm |
| Product weight: | 0.093 kg |
| Time delay type: | A, Ac, At, B, Bw, C, D, Di, H |
| Contacts type and composition: | 2 C/O |
| Functionality: | Multifunction |
| Dielectric strength: | 2.5 kV for 1 mA/1 minute at 50 Hz conforming to IEC 61812-1 |
|---|---|
| Standards: | IEC 61812-1EN 61000-6-2EN 61000-6-1EN 61000-6-4EN 61000-6-3 |
| Directives: | 2004/108/EC - electromagnetic compatibility2006/95/EC - low voltage directive |
| Product certifications: | CSACEcULusGLRCMCCCEAC |
| Ambient air temperature for operation: | -20...60 °C |
| Ambient air temperature for storage: | -30...60 °C |
| IP degree of protection: | IP40 housing: conforming to IEC 60529IP20 terminal block: conforming to IEC 60529IP40 front face: conforming to IEC 60529 |
| Vibration resistance: | 20 m/s² (f= 10...150 Hz) conforming to IEC 60068-2-6 |
| Shock resistance: | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| Relative humidity: | 93 %, without condensation conforming to IEC 60068-2-30 |
| Electromagnetic compatibility: | Electrostatic discharge immunity test - test level: 6 kV level 3 (contact discharge) conforming to EN/IEC 61000-4-2Electrostatic discharge immunity test - test level: 8 kV level 3 (air discharge) conforming to EN/IEC 61000-4-2Fast transients immunity test - test level: 1 kV level 3 (capacitive connecting clip) conforming to IEC 61000-4-4Fast transients immunity test - test level: 2 kV level 3 (direct contact) conforming to IEC 61000-4-4Surge immunity test - test level: 1 kV level 3 (differential mode) conforming to IEC 61000-4-5Surge immunity test - test level: 2 kV level 3 (common mode) conforming to IEC 61000-4-5Radiated radio-frequency electromagnetic field immunity test - test level: 10 V level 3 (0.15...80 MHz) conforming to IEC 61000-4-6Electromagnetic field immunity test - test level: 10 V/m level 3 (80 MHz...1 GHz) conforming to IEC 61000-4-3Immunity to microbreaks and voltage drops - test level: 30 % (500 ms) conforming to IEC 61000-4-11Immunity to microbreaks and voltage drops - test level: 100 % (20 ms) conforming to IEC 61000-4-11Conducted and radiated emissions class B conforming to EN 55022 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3606480676574 |
|---|
