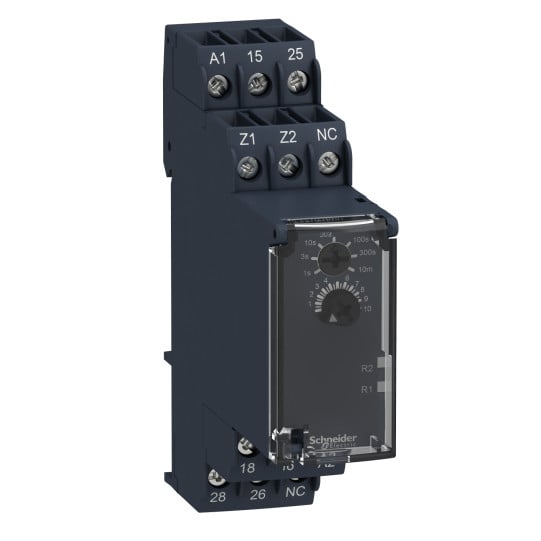

Harmony Time RE22 - Off-delay Timing Relay - 0.05s…10min - 24…240V AC/DC - 2C/O - RE22R2KMR
DESCRIPTION
| Range of product: | Harmony Timer Relays |
|---|---|
| Product or component type: | Single function relay |
| Discrete output type: | Relay |
| Device short name: | RE22 |
| Nominal output current: | 5 A |
| [Uc] control circuit voltage: | 24...240 V |
| Contacts type and composition: | 2 C/O |
| Connections - terminals: | Screw connectors |
| [In] rated current: | 5 A |
| Output type: | Relay |
| Contacts type and composition: | 2 C/O timed contact, cadmium free |
|---|---|
| Time delay type: | Delay on de-energization |
| Time delay range: | 10...100 s0.05...1 s30...300 s3...30 s1...10 min1...10 s0.3...3 s |
| Control type: | Rotary knobPotentiometer external |
| [Us] rated supply voltage: | 24...240 V AC/DC 50/60 Hz |
| Input voltage: | |
| Voltage range: | 0.85...1.1 Us |
| Supply frequency: | 50...60 Hz +/- 5 % |
| Connections - terminals: | Screw terminals, 1 x 0.5...1 x 3.3 mm² (AWG 20...AWG 12) solid without cable endScrew terminals, 2 x 0.5...2 x 2.5 mm² (AWG 20...AWG 14) solid without cable endScrew terminals, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable endScrew terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) flexible with cable end |
| Tightening torque: | 0.6...1 N.m conforming to IEC 60947-1 |
| Housing material: | Self-extinguishing |
| Repeat accuracy: | +/- 0.5 % conforming to IEC 61812-1 |
| Temperature drift: | +/- 0.05 %/°C |
| Voltage drift: | +/- 0.2 %/V |
| Setting accuracy of time delay: | +/- 10 % of full scale at 25 °C conforming to IEC 61812-1 |
| Insulation resistance: | 100 MOhm at 500 V DC conforming to IEC 60664-1 |
| Reset time: | 100 ms on de-energisation |
| Immunity to microbreaks: | 10 ms |
| Power consumption in VA: | 3 VA at 240 V AC |
| Power consumption in W: | 2 W at 240 V DC |
| Switching capacity in VA: | 1250 VA |
| Minimum switching current: | 10 mA at 5 V DC |
| Maximum switching current: | 5 A |
| Maximum switching voltage: | 250 V AC |
| Electrical durability: | 100000 cycles, 2 A at 24 V, DC-1100000 cycles, 5 A at 250 V, AC-1 |
| Mechanical durability: | 10000000 cycles |
| [Uimp] rated impulse withstand voltage: | 5 kV for 1.2...50 µs conforming to IEC 60664-1 |
| Maximum delay response: | 200 ms |
| Creepage distance: | 4 kV/3 conforming to IEC 60664-1 |
| Overvoltage category: | III conforming to IEC 60664-1 |
| Safety reliability data: | B10d = 160000MTTFd = 171.2 years |
| Mounting position: | Any position |
| Mounting support: | 35 mm DIN rail conforming to EN/IEC 60715 |
| Status LED: | LED backlight green (steady) for dial pointer indicationLED yellow (steady) for output relay energisedLED yellow (steady) for power ON |
| Width: | 22.5 mm |
| Product weight: | 0.1 kg |
| Time delay type: | K |
| Contacts type and composition: | 2 C/O |
| Functionality: | Off-delay timing |
| Dielectric strength: | 2.5 kV for 1 mA/1 minute at 50 Hz between relay output and power supply with basic insulation conforming to IEC 61812-1 |
|---|---|
| Standards: | IEC 61812-1UL 508 |
| Directives: | 2006/95/EC - low voltage directive2004/108/EC - electromagnetic compatibility |
| Product certifications: | EACULRCMGLCCCCSACE |
| Ambient air temperature for operation: | -20...60 °C |
| Ambient air temperature for storage: | -40...70 °C |
| IP degree of protection: | IP40 housing: conforming to IEC 60529IP20 terminals: conforming to IEC 60529IP50 front panel: conforming to IEC 60529 |
| Pollution degree: | 3 conforming to IEC 60664-1 |
| Vibration resistance: | 20 m/s² (f= 10...150 Hz) conforming to IEC 60068-2-6 |
| Shock resistance: | 15 gn not operating for 11 ms conforming to IEC 60068-2-275 gn in operation for 11 ms conforming to IEC 60068-2-27 |
| Relative humidity: | 95 % at 25...55 °C |
| Electromagnetic compatibility: | Fast transients immunity test - test level: 1 kV level 3 (capacitive connecting clip) conforming to IEC 61000-4-4Surge immunity test - test level: 1 kV level 3 (differential mode) conforming to IEC 61000-4-5Surge immunity test - test level: 2 kV level 3 (common mode) conforming to IEC 61000-4-5Electrostatic discharge - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2Electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2Radiated radio-frequency electromagnetic field immunity test - test level: 10 V/m level 3 (80 MHz...1 GHz) conforming to IEC 61000-4-3Conducted RF disturbances - test level: 10 V level 3 (0.15...80 MHz) conforming to IEC 61000-4-6Fast transient bursts - test level: 2 kV level 3 (direct contact) conforming to IEC 61000-4-4Immunity to microbreaks and voltage drops - test level: 30 % (500 ms) conforming to IEC 61000-4-11Immunity to microbreaks and voltage drops - test level: 100 % (20 ms) conforming to IEC 61000-4-11 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3606480792465 |
|---|
