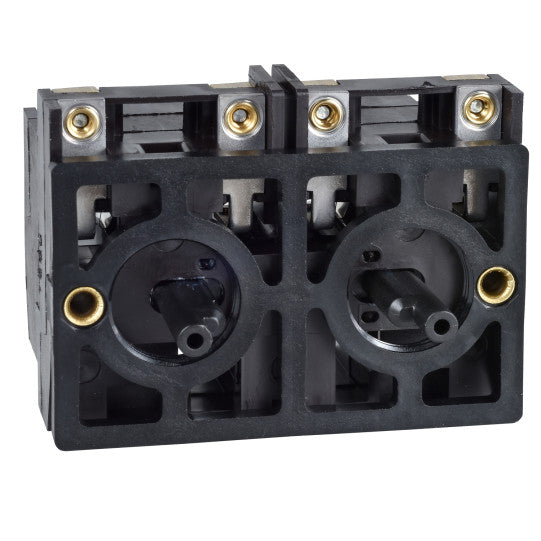

Harmony XAC, Double contact block, spring return, single speed, snap action, 2 NO - XESD1191
SKU : XESD1191
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Harmony XAC, Double contact block, spring return, single speed, snap action, 2 NO - XESD1191
DESCRIPTION
| Range of product: | Harmony XAC |
|---|---|
| Product or component type: | Contact block |
| Component name: | XESD |
| Electrical circuit type: | Power circuit |
| Contact block application: | Single speed |
| Contact block type: | Double |
| Type of operator: | 2 spring return |
| Product compatibility: | XACB |
| Mechanical interlocking: | With mechanical interlocking |
| Contacts type and composition: | 2 NO |
| Poles description: | 2-pole |
| Mounting of block: | Front mounting |
| Contact operation: | Snap action |
| Connections - terminals: | Screw clamp terminals, 1 x 2.5 mm² with or without cable endScrew clamp terminals, 2 x 1.5 mm² with or without cable end |
|---|---|
| Horizontal fixing centres: | 40 mm |
| Mechanical durability: | 500000 cycles1000000 cycles |
| [Ithe] conventional enclosed thermal current: | 12 A |
| [Ui] rated insulation voltage: | 600 V conforming to CSA |
| [Uimp] rated impulse withstand voltage: | 6 kV conforming to IEC 60947-1 |
| Operating force: | 17 N |
| Short-circuit protection: | 10 A fuse protection by cartridge fuse type aM |
| Rated operational power in W: | 2200 W AC-3 at 240 V conforming to IEC 60947-3 appendix A2200 W AC-4 at 400 V conforming to IEC 60947-3 appendix A |
| Rated power in hp: | 2 hp at 240 V, CSA certified3 hp at 600 V, CSA certified5 hp at 400 V, CSA certified |
| Electrical durability: | 300000 cycles AC-3, 2200 W at 240 V, operating rate 300000 cycles AC-3, 2200 W at 400 V, operating rate 300000 cycles AC-4, 2200 W at 240 V, operating rate 300000 cycles AC-4, 2200 W at 400 V, operating rate 500000 cycles AC-3, 1500 W at 240 V, operating rate 500000 cycles AC-4, 1500 W at 240 V, operating rate 800000 cycles AC-3, 1500 W at 400 V, operating rate 800000 cycles AC-4, 1500 W at 400 V, operating rate |
| Terminals description ISO n°1: | (23-24)NO(13-14)NOB |
| Terminals description ISO n°2: | (43-44)NO(33-34)NOB |
| Terminal identifier: | (11-12)NC(13-14)NO |
| Standards: | EN 60947-3CSA C22.2 No 14IEC 60947-3 |
|---|---|
| Ambient air temperature for operation: | -25...70 °C |
| Ambient air temperature for storage: | -40...70 °C |
| Vibration resistance: | 15 gn (f= 10...500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance: | 100 gn conforming to IEC 60068-2-27 |
| Electrical shock protection class: | Class II conforming to IEC 61140 |
| REACh Regulation: | Free of Substances of Very High Concern above the thresholdREACh free of SVHC |
| Code EAN: | 3389110641080 |
|---|
