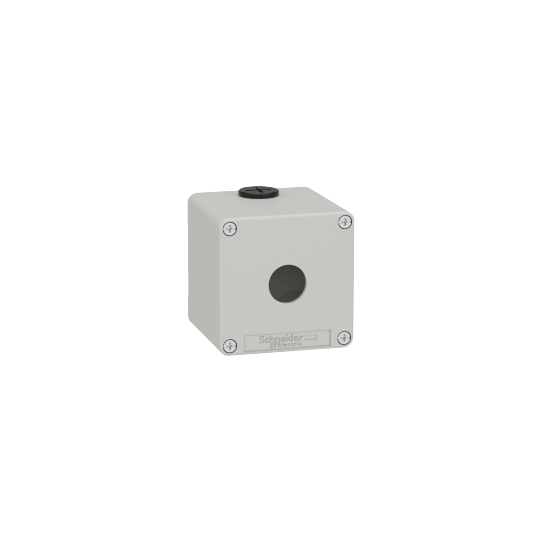

Harmony XAP, XB2 SL, Empty control station, zinc alloy, grey, M20, 1 cut-out 22mm, 80 x 80 x 77, UL cULus - XAPD1501
SKU : XAPD1501
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Harmony XAP, XB2 SL, Empty control station, zinc alloy, grey, M20, 1 cut-out 22mm, 80 x 80 x 77, UL cULus - XAPD1501
DESCRIPTION
| Range of product: | Harmony XAP |
|---|---|
| Product or component type: | Die-cast empty control station |
| Device short name: | XAPD |
| Product destination: | For Ø 22 mm control and signalling units |
| Product front plate size: | 80 x 80 mm |
| Usable depth: | 74.5 mm |
| Number of cut-out: | 1 cut-out |
| Colour of base of enclosure: | Grey (RAL 7035) |
| Colour of cover: | Grey (RAL 7035) |
| Material: | Die cast zinc |
| Sale per indivisible quantity: | 1 |
| IP degree of protection: | IP65 conforming to EN/IEC 60529 and EN/IEC 60947-5-1IP66 conforming to EN/IEC 60529 and EN/IEC 60947-5-1IP69 conforming to EN/IEC 60529 and EN/IEC 60947-5-1 |
| Number of vertical rows: | 1 |
|---|---|
| Number of horizontal rows: | 1 |
| Cut-out dimensions: | Ø 22 mm |
| Control station type: | Metal |
| Cable entry: | 2 x cable gland conforming to ISO |
| Thread type: | M20 x 1.5 |
| CAD overall width: | 80 mm |
| CAD overall height: | 80 mm |
| CAD overall depth: | 77 mm |
| Net weight: | 0.605 kg |
| Protective treatment: | TC |
|---|---|
| Ambient air temperature for storage: | -40...70 °C |
| Ambient air temperature for operation: | -25...70 °C |
| Electrical shock protection class: | Class I conforming to EN/IEC 61140 |
| Degree of protection: | UL type 4 conforming to UL 50 EUL type 4X conforming to UL 50 E |
| IK degree of protection: | IK07 conforming to EN/IEC 62262 |
| Resistance to chemical agents: | Special treatment can be obtained on request |
| Product certifications: | ULcULusEAC |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389110001044 |
|---|
