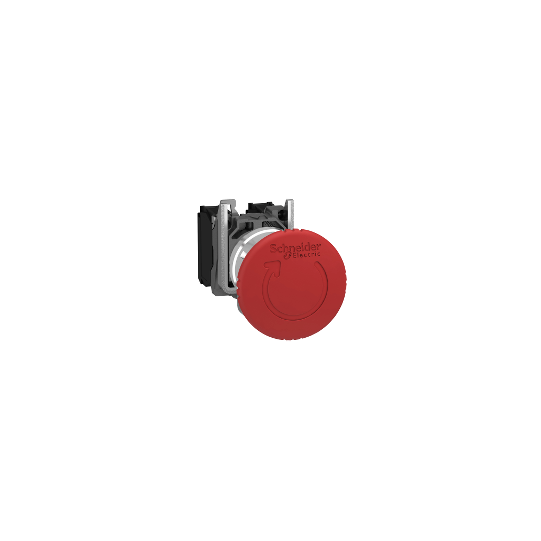

Harmony XB4 - ATEX D, Emergency stop switching off, metal, red mushroom Ø40, Ø22, trigger latching turn to release, 1 NO + 1 NC, ATEX - XB4BS8445EX
SKU : XB4BS8445EX
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Harmony XB4 - ATEX D, Emergency stop switching off, metal, red mushroom Ø40, Ø22, trigger latching turn to release, 1 NO + 1 NC, ATEX - XB4BS8445EX
DESCRIPTION
| Range of product: | Harmony XB4 |
|---|---|
| Product or component type: | Complete emergency stop push-button |
| Device short name: | XB4 |
| Bezel material: | Chromium plated metal |
| Fixing collar material: | Zamak |
| Head type: | Standard |
| Mounting diameter: | 22 mm |
| Sale per indivisible quantity: | 1 |
| Dust zone: | Zone 21 - 22 |
| Type of operator: | trigger action and mechanical latching |
| Reset: | Turn to release |
| Operator profile: | Red mushroom Ø 40 mm |
| Contacts type and composition: | 1 NO + 1 NC |
| Device mounting: | Fixing hole - diameter: 22.5 mm 22.3 +0.4/0 |
|---|---|
| Fixing center: | >= 30 x 40 mm (support panel) |
| Fixing mode: | Screw-fixed: 0.8...1.2 N.m |
| Embedding depth: | 43 mm |
| Marking: | Ex tb IIIC |
| Shape of signaling unit head: | Round |
| Contact operation: | Slow-break |
| Contacts usage: | Standard |
| Positive opening: | With conforming to IEC 60947-5-1 appendix K |
| Operating travel: | 1.5 mm (NC changing electrical state)4.3 mm (total travel) |
| Mechanical durability: | 300000 cycles |
| Connections - terminals: | Screw clamp terminals, Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to IEC 60947-1 |
| Tightening torque: | 0.8...1.2 N.m conforming to IEC 60947-1 |
| Shape of screw head: | Cross compatible with Philips no 1 screwdriverCross compatible with pozidriv No 1 screwdriverSlotted compatible with flat Ø 4 mm screwdriverSlotted compatible with flat Ø 5.5 mm screwdriver |
| Contacts material: | Silver alloy (Ag/Ni) |
| Short-circuit protection: | 10 A cartridge fuse type gG conforming to IEC 60947-5-1 |
| [Ith] conventional free air thermal current: | 10 A conforming to IEC 60947-5-1 |
| [Ui] rated insulation voltage: | 600 V (pollution degree 3) conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage: | 6 kV conforming to IEC 60947-1 |
| [Ie] rated operational current: | 3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-16 A at 120 V, AC-15, A600 conforming to IEC 60947-5-10.1 A at 600 V, DC-13, Q600 conforming to IEC 60947-5-10.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-10.55 A at 125 V, DC-13, Q600 conforming to IEC 60947-5-11.2 A at 600 V, AC-15, A600 conforming to IEC 60947-5-1 |
| Electrical durability: | 1000000 cycles AC-15, 2 A at 230 V, operating rate 1000000 cycles AC-15, 3 A at 120 V, operating rate 1000000 cycles AC-15, 4 A at 24 V, operating rate 1000000 cycles DC-13, 0.2 A at 110 V, operating rate 1000000 cycles DC-13, 0.5 A at 24 V, operating rate |
| Electrical reliability: | ? ? |
| Customizable: | No |
| Customizable: | 0 |
| Compatibility code: | XB4 |
| Protective treatment: | TH |
|---|---|
| Ambient air temperature for operation: | -40...70 °C |
| Overvoltage category: | I conforming to IEC 60536 |
| IP degree of protection: | IP66 conforming to IEC 60529IP69IP69K |
| IK degree of protection: | IK06 |
| Standards: | IEC 60947-5-5IEC 60079-0:2009EN 60079-31:2009IEC 61000-6-2ISO 13850IEC 60079-0:2007IEC 60079-31:2008 |
| Directives: | 94/9/EC - ATEX directive |
| Product certifications: | INERIS 04ATEX9004U |
| Vibration resistance: | 5 gn (f= 2...500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance: | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-2750 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Total lifecycle Carbon footprint: | 2 kg CO2 eq.Carbon footprint of the manufacturing phase [A1 to A3] |
| Unit Type of Package 1: | PCENumber of Units in Package 1 |
| Code EAN: | 3389119613125 |
|---|
