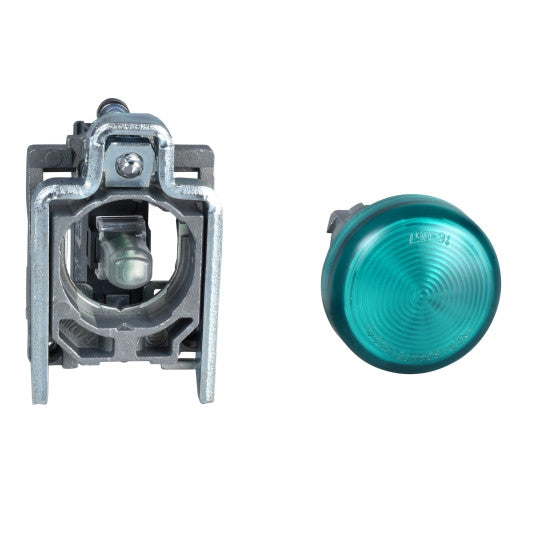

Harmony XB4 - ATEX D, Pilot light, metal, green, Ø22, plain lens with integral LED, 24 V AC/DC, ATEX - XB4BVB3EX
SKU : XB4BVB3EX
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Harmony XB4 - ATEX D, Pilot light, metal, green, Ø22, plain lens with integral LED, 24 V AC/DC, ATEX - XB4BVB3EX
DESCRIPTION
| Range of product: | Harmony XB4 |
|---|---|
| Product or component type: | Complete pilot light |
| Device short name: | XB4 |
| Bezel material: | Chromium plated metal |
| Fixing collar material: | Zamak |
| Head type: | Standard |
| Mounting diameter: | 22 mm |
| Sale per indivisible quantity: | 1 |
| Dust zone: | Zone 21 - 22 |
| Operator additional information: | With plain lens |
| Resistance to high pressure washer: | 7000000 Pa at 55 °C, distance |
|---|---|
| Device mounting: | Fixing hole - diameter: 22.5 mm 22.3 +0.4/0 |
| Fixing center: | >= 30 x 40 mm (support panel) |
| Embedding depth: | 43 mm |
| Marking: | Ex tb IIIC |
| Shape of signaling unit head: | Round |
| Cap/operator or lens colour: | Green |
| Connections - terminals: | Screw clamp terminals, Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to EN/IEC 60947-1 |
| [Ui] rated insulation voltage: | 250 V (pollution degree 3) conforming to EN 60947-1 |
| [Uimp] rated impulse withstand voltage: | 4 kV conforming to EN 60947-1 |
| Signalling type: | Steady |
| Light source: | Integral LED |
| Light source colour: | Green |
| [Us] rated supply voltage: | 24 V AC/DC 50/60 Hz |
| Supply voltage limits: | 19.2...30 V DC21.6...26.4 V AC |
| Current consumption: | 18 mA |
| Service life: | 100000 h at rated voltage and 25 °C |
| Surge withstand: | 1 kV conforming to IEC 61000-4-5 |
| Customizable: | No |
| Customizable: | 0 |
| Compatibility code: | XB4 |
| Protective treatment: | TH |
|---|---|
| Ambient air temperature for storage: | -40...70 °C |
| Ambient air temperature for operation: | -20...60 °C |
| Overvoltage category: | I conforming to IEC 60536 |
| IP degree of protection: | IP65 conforming to IEC 60529 |
| NEMA degree of protection: | NEMA 13NEMA 4X |
| IK degree of protection: | IK05 conforming to IEC 50102 |
| Standards: | EN 60079-0:2009EN 60079-31:2009EN 61000-6-2IEC 60079-0:2007IEC 60079-31:2008 |
| Directives: | 94/9/EC - ATEX directive |
| Product certifications: | INERIS 04ATEX9004U |
| Vibration resistance: | 5 gn (f= 12...500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance: | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-2750 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Resistance to fast transients: | 2 kV conforming to IEC 61000-4-4 |
| Resistance to electromagnetic fields: | 10 V/m conforming to IEC 61000-4-3 |
| Resistance to electrostatic discharge: | 6 kV on contact (on metal parts) conforming to IEC 61000-4-28 kV in free air (in insulating parts) conforming to IEC 61000-4-2 |
| Electromagnetic emission: | Class B conforming to IEC 55011 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389118030923 |
|---|
