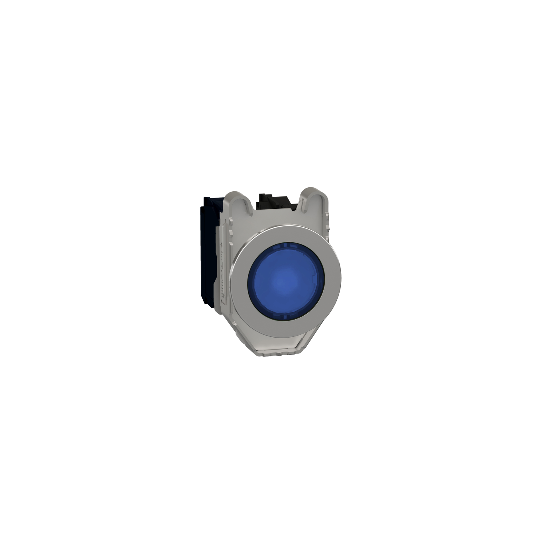

Harmony XB4, Illuminated push button flush mounted, metal, blue, Ø30, integral LED, 24V AC/DC 1 NO + 1 NC - XB4FW36B5
SKU : XB4FW36B5
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Harmony XB4, Illuminated push button flush mounted, metal, blue, Ø30, integral LED, 24V AC/DC 1 NO + 1 NC - XB4FW36B5
DESCRIPTION
| Range of product: | Harmony XB4 |
|---|---|
| Product or component type: | Illuminated push-button |
| Device short name: | XB4F |
| Bezel material: | Chromium plated metal |
| Fixing collar material: | Zamak |
| Mounting diameter: | 30.5 mm |
| Sale per indivisible quantity: | 1 |
| Head type: | Built-in-flush |
| Shape of signaling unit head: | Round |
| Type of operator: | spring return |
| Operator profile: | Blue flush |
| Operator additional information: | With plain lens |
| Contacts type and composition: | 1 NO + 1 NC |
| Contact operation: | Slow-break |
| Connections - terminals: | Screw clamp terminals, Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to EN/IEC 60947-1 |
| Light source: | Protected LED |
| Bulb base: | Integral LED |
| [Us] rated supply voltage: | 24 V AC/DC at 50/60 Hz |
| Height: | 47 mm |
|---|---|
| Width: | 36.6 mm |
| Depth: | 55 mm |
| Terminals description ISO n°1: | (13-14)NO(21-22)NC |
| Product weight: | 0.132 kg |
| Resistance to high pressure washer: | 7000000 Pa at 55 °C, distance |
| Device mounting: | Built-in |
| Fixing mode: | By screws recommended torque: 0.8 N.m |
| Contacts usage: | Standard contacts |
| Positive opening: | With conforming to EN/IEC 60947-5-1 appendix K |
| Operating travel: | 1.5 mm (NC changing electrical state)2.6 mm (NO changing electrical state)4.3 mm (total travel) |
| Operating force: | 3.5 N NC changing electrical state3.8 N |
| Mechanical durability: | 10000000 cycles |
| Tightening torque: | 0.8...1.2 N.m conforming to EN 60947-1 |
| Shape of screw head: | Cross compatible with Philips no 1 screwdriverCross compatible with pozidriv No 1 screwdriverSlotted compatible with flat Ø 4 mm screwdriverSlotted compatible with flat Ø 5.5 mm screwdriver |
| Contacts material: | Silver alloy (Ag/Ni) |
| Short-circuit protection: | 10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1 |
| [Ith] conventional free air thermal current: | 10 A conforming to EN/IEC 60947-5-1 |
| [Ui] rated insulation voltage: | 600 V (pollution degree 3) conforming to EN/IEC 60947-1 |
| [Uimp] rated impulse withstand voltage: | 6 kV conforming to EN/IEC 60947-1 |
| [Ie] rated operational current: | 3 A at 240 V, AC-15, A600 conforming to EN/IEC 60947-5-16 A at 120 V, AC-15, A600 conforming to EN/IEC 60947-5-10.1 A at 600 V, DC-13, Q600 conforming to EN/IEC 60947-5-10.27 A at 250 V, DC-13, Q600 conforming to EN/IEC 60947-5-10.55 A at 125 V, DC-13, Q600 conforming to EN/IEC 60947-5-11.2 A at 600 V, AC-15, A600 conforming to EN/IEC 60947-5-1 |
| Electrical durability: | 1000000 cycles, AC-15, 2 A at 230 V, operating rate 1000000 cycles, AC-15, 3 A at 120 V, operating rate 1000000 cycles, AC-15, 4 A at 24 V, operating rate 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate |
| Electrical reliability: | ? ? |
| Signalling type: | Steady |
| [Us] rated supply voltage: | 24 V |
| Current consumption: | 18 mA |
| Service life: | 100000 h at rated voltage and 25 °C |
| Surge withstand: | 1 kV conforming to IEC 61000-4-5 |
| Supply voltage limits: | 19.2...30 V DC21.6...26.4 V AC |
| Device presentation: | Complete product |
| Customizable: | Yes |
| Customizable: | 1 |
| GCR BRIDGE: | XB4FWCUST02 |
| Compatibility code: | XB4 |
| Cap/operator or lens colour: | Blue |
| Protective treatment: | TH |
|---|---|
| Ambient air temperature for storage: | -40...70 °C |
| Ambient air temperature for operation: | -40...70 °C |
| Electrical shock protection class: | Class I conforming to IEC 60536 |
| IP degree of protection: | IP66 conforming to IEC 60529IP67 conforming to IEC 60529IP69 conforming to IEC 60529IP69K conforming to ISO 20653Type 13 conforming to UL 50 EType 12 conforming to UL 50 EType 4 conforming to UL 50 EType 4X conforming to UL 50 E |
| IK degree of protection: | IK06 conforming to IEC 50102 |
| Standards: | CSA C22.2 No 14EN/IEC 60947-5-1EN/IEC 60947-5-4UL 508EN/IEC 60947-1JIS C8201-5-1CEJIS C8201-1 |
| Product certifications: | UL listedCSACCCEAC |
| Vibration resistance: | 5 gn (f= 10...500 Hz) conforming to IEC 60068-2-62 mm peak to peak (f= 2...10 Hz) conforming to IEC 60068-2-6 |
| Shock resistance: | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-2750 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-2725 gn (duration = 6 ms) for 1000 shocks on each axis conforming to IEC 60068-2-27 |
| Resistance to fast transients: | 2 kV conforming to IEC 61000-4-4 |
| Resistance to electromagnetic fields: | 10 V/m conforming to IEC 61000-4-3 |
| Resistance to electrostatic discharge: | 6 kV on contact (on metal parts) conforming to IEC 61000-4-28 kV in free air (in insulating parts) conforming to IEC 61000-4-2 |
| Electromagnetic emission: | Class B conforming to IEC 55011 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3606489580759 |
|---|
