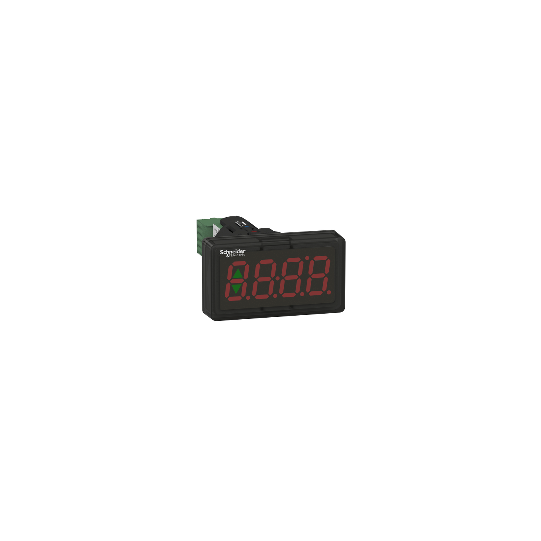

Harmony XB5, Digital panel meter, plastic, black, Ø22, 4 digit red LED display, 4...20 mA input - XBH1AA0R4
SKU : XBH1AA0R4
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Harmony XB5, Digital panel meter, plastic, black, Ø22, 4 digit red LED display, 4...20 mA input - XBH1AA0R4
DESCRIPTION
| Range of product: | Harmony XB5 |
|---|---|
| Product or component type: | Display module |
| Display digits: | 4 digit(s) - 14 mm in height |
| Display type: | 7 segments LED |
|---|---|
| Display colour: | Red |
| Counting capacity: | -999...9999 |
| Accuracy: | +/- 0.15 % of the measuring range + 1 digit |
| Solid state output type: | 2 x power MOSFET |
| Discrete output voltage: | 30 V DC |
| Discrete output current: | 0.5 A |
| Brightness: | Fixed |
| Analogue input range: | 4...20 mA DC |
| Maximum voltage drop: | 6 V |
| Temperature drift: | 50 ppm/°C |
| Mounting diameter: | 22.5 mm |
| Connections - terminals: | Spring terminals,clamping capacity: 1 x 0.2...1 mm² (AWG 24...AWG 17) |
| Housing material: | Plastic |
| Flame retardance: | UL94-V1 |
| Tightening torque: | 1.3 N.m +/- 0.2 N.m11.5 lb.in +/- 1.8 lb.in |
| Width: | 51.5 mm |
| Height: | 29.5 mm |
| Depth: | 78.2 mm |
| Net weight: | 0.032 kg |
| Ambient air temperature for operation: | -20...60 °C |
|---|---|
| Ambient air temperature for storage: | -20...85 °C |
| Vibration resistance: | 5 gn (f= 2...500 Hz) conforming to IEC 60068-2-6 |
| IP degree of protection: | IP65 (front panel) conforming to IEC 60529 |
| Standards: | EN 61326-1 |
| EU RoHS Directive: | Under investigationWEEE |
| Code EAN: | 3606489737221 |
|---|
