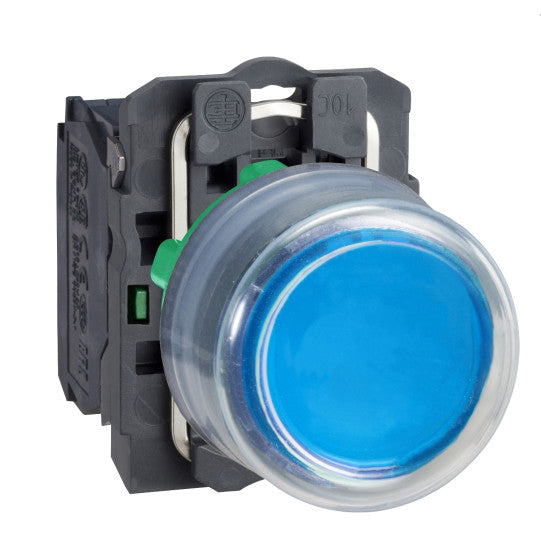

Harmony XB5, Push button, plastic, projecting, blue, Ø22, spring return, booted, unmarked, 1 NO - XB5AP61
SKU : XB5AP61
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Harmony XB5, Push button, plastic, projecting, blue, Ø22, spring return, booted, unmarked, 1 NO - XB5AP61
DESCRIPTION
| Range of product: | Harmony XB5 |
|---|---|
| Product or component type: | Push-button |
| Device short name: | XB5 |
| Product compatibility: | Not compatible with legend holder |
| Bezel material: | PlasticDark grey plastic |
| Head type: | Standard |
| Fixing collar material: | Plastic |
| Mounting diameter: | 22 mm |
| Sale per indivisible quantity: | 1 |
| Shape of signaling unit head: | Round |
| Type of operator: | spring return |
| Operator profile: | Blue projecting, unmarked |
| Operator additional information: | Clear boot |
| Contacts type and composition: | 1 NO |
| Contact operation: | Slow-break |
| Connections - terminals: | Screw clamp terminals, Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to EN/IEC 60947-1 |
| Height: | 42 mm |
|---|---|
| Width: | 30 mm |
| Depth: | 61 mm |
| Terminals description ISO n°1: | (13-14)NO |
| Product weight: | 0.039 kg |
| Resistance to high pressure washer: | 7000000 Pa at 55 °C, distance |
| Contacts usage: | Standard contacts |
| Positive opening: | Without |
| Operating travel: | 2.6 mm (NO changing electrical state)4.3 mm (total travel) |
| Operating force: | 3.8 N NO changing electrical state |
| Mechanical durability: | 10000000 cycles |
| Tightening torque: | 0.8...1.2 N.m conforming to EN 60947-1 |
| Shape of screw head: | Cross compatible with Philips no 1 screwdriverCross compatible with pozidriv No 1 screwdriverSlotted compatible with flat Ø 4 mm screwdriverSlotted compatible with flat Ø 5.5 mm screwdriver |
| Contacts material: | Silver alloy (Ag/Ni) |
| Short-circuit protection: | 10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1 |
| [Ith] conventional free air thermal current: | 10 A conforming to EN/IEC 60947-5-1 |
| [Ui] rated insulation voltage: | 600 V (pollution degree 3) conforming to EN/IEC 60947-1 |
| [Uimp] rated impulse withstand voltage: | 6 kV conforming to EN/IEC 60947-1 |
| [Ie] rated operational current: | 3 A at 240 V, AC-15, A600 conforming to EN/IEC 60947-5-16 A at 120 V, AC-15, A600 conforming to EN/IEC 60947-5-10.1 A at 600 V, DC-13, Q600 conforming to EN/IEC 60947-5-10.27 A at 250 V, DC-13, Q600 conforming to EN/IEC 60947-5-10.55 A at 125 V, DC-13, Q600 conforming to EN/IEC 60947-5-11.2 A at 600 V, AC-15, A600 conforming to EN/IEC 60947-5-1 |
| Electrical durability: | 1000000 cycles AC-15, 2 A at 230 V, operating rate 1000000 cycles AC-15, 3 A at 120 V, operating rate 1000000 cycles AC-15, 4 A at 24 V, operating rate 1000000 cycles DC-13, 0.2 A at 110 V, operating rate 1000000 cycles DC-13, 0.5 A at 24 V, operating rate |
| Electrical reliability: | ? ? |
| Device presentation: | Complete product |
| Customizable: | Yes |
| Customizable: | 1 |
| GCR BRIDGE: | XB5APCUST01 |
| Compatibility code: | XB5 |
| Cap/operator or lens colour: | Blue |
| Protective treatment: | TH |
|---|---|
| Ambient air temperature for storage: | -40...70 °C |
| Ambient air temperature for operation: | -40...70 °C |
| Overvoltage category: | Class II conforming to IEC 60536 |
| IP degree of protection: | IP66 conforming to IEC 60529IP67 |
| NEMA degree of protection: | NEMA 13NEMA 4X |
| IK degree of protection: | IK03 conforming to IEC 50102 |
| Product certifications: | CSADNVUL listedBVGLLROS (Lloyds register of shipping) |
| Vibration resistance: | 5 gn (f= 2...500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance: | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-2750 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389110134483 |
|---|
