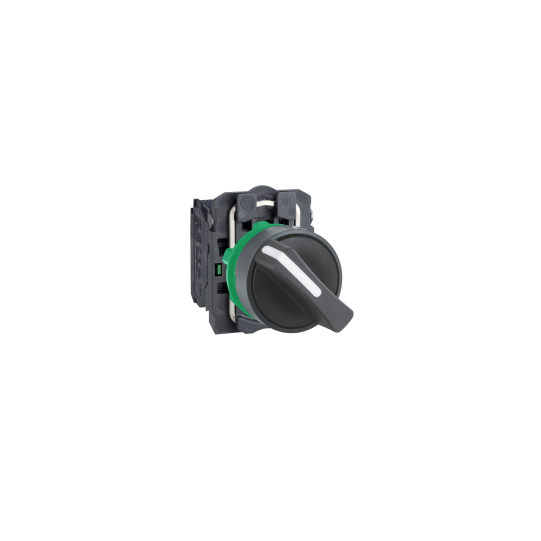

Harmony XB5, Selector switch, plastic, black, Ø22, 2 positions, stay put, 2 NO - XB5AD23
SKU : XB5AD23
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Harmony XB5, Selector switch, plastic, black, Ø22, 2 positions, stay put, 2 NO - XB5AD23
DESCRIPTION
| Range of product: | Harmony XB5 |
|---|---|
| Product or component type: | Selector switch |
| Device short name: | XB5 |
| Bezel material: | Dark grey plastic |
| Head type: | Standard |
| Mounting diameter: | 22.5 mm |
| Sale per indivisible quantity: | 1 |
| Shape of signaling unit head: | Round |
| Type of operator: | stay put |
| Operator profile: | Black standard handle |
| Operator position information: | 2 positions 90° |
| Contacts type and composition: | 2 NO |
| Contact operation: | Slow-break |
| Connections - terminals: | Screw clamp terminals, Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to IEC 60947-1 |
| Height: | 42 mm |
|---|---|
| Width: | 30 mm |
| Depth: | 70 mm |
| Resistance to high pressure washer: | 7000000 Pa at 55 °C, distance |
| Contacts usage: | Standard contacts |
| Positive opening: | Without |
| Mechanical durability: | 1000000 cycles |
| Tightening torque: | 0.8...1.2 N.m conforming to IEC 60947-1 |
| Shape of screw head: | Cross compatible with Philips no 1 screwdriverCross compatible with pozidriv No 1 screwdriverSlotted compatible with flat Ø 4 mm screwdriverSlotted compatible with flat Ø 5.5 mm screwdriver |
| Contacts material: | Silver alloy (Ag/Ni) |
| Short-circuit protection: | 10 A cartridge fuse type gG conforming to IEC 60947-5-1 |
| [Ith] conventional free air thermal current: | 10 A conforming to IEC 60947-5-1 |
| [Ui] rated insulation voltage: | 600 V (pollution degree 3) conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage: | 6 kV conforming to IEC 60947-1 |
| [Ie] rated operational current: | 3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-16 A at 120 V, AC-15, A600 conforming to IEC 60947-5-10.1 A at 600 V, DC-13, Q600 conforming to IEC 60947-5-10.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-10.55 A at 125 V, DC-13, Q600 conforming to IEC 60947-5-11.2 A at 600 V, AC-15, A600 conforming to IEC 60947-5-1 |
| Electrical durability: | 1000000 cycles, AC-15, 2 A at 230 V, operating rate 1000000 cycles, AC-15, 3 A at 120 V, operating rate 1000000 cycles, AC-15, 4 A at 24 V, operating rate 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate |
| Electrical reliability: | ? ? |
| Device presentation: | Complete product |
| Customizable: | No |
| Customizable: | 0 |
| Compatibility code: | XB5 |
| Cap/operator or lens colour: | Black |
| Protective treatment: | TH |
|---|---|
| Ambient air temperature for storage: | -40...70 °C |
| Ambient air temperature for operation: | -40...70 °C |
| Electrical shock protection class: | Class II conforming to IEC 60536 |
| IP degree of protection: | IP67 conforming to IEC 60529IP69IP69K |
| NEMA degree of protection: | NEMA 13NEMA 4X |
| IK degree of protection: | IK04 conforming to IEC 50102 |
| Standards: | IEC 60947-1JIS C8201-5-1IEC 60947-5-1CSA C22.2 No 14IEC 60947-5-4UL 508JIS C8201-1 |
| Product certifications: | BVULCSADNVLROS (Lloyds register of shipping) |
| Vibration resistance: | 5 gn (f= 2...500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance: | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-2750 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Total lifecycle Carbon footprint: | 0.4 kg CO2 eq.Carbon footprint of the manufacturing phase [A1 to A3] |
| Unit Type of Package 1: | PCENumber of Units in Package 1 |
| Code EAN: | 3389119021869 |
|---|
