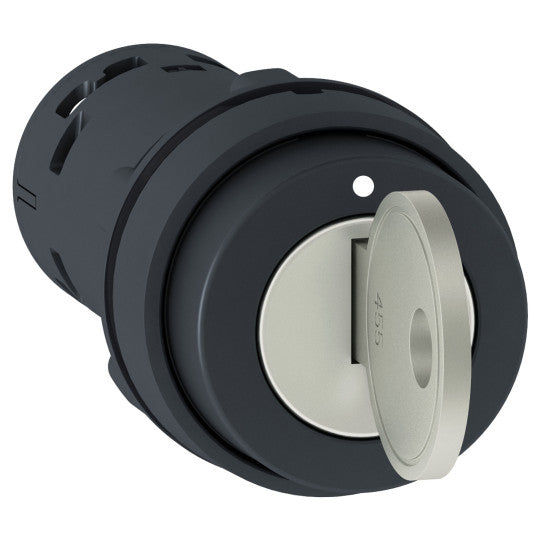

Harmony XB7, Monolithic key switch selector, plastic, black, Ø22, key n°455, 2 positions, stay put, 1 NO - XB7NG21
SKU : XB7NG21
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Harmony XB7, Monolithic key switch selector, plastic, black, Ø22, key n°455, 2 positions, stay put, 1 NO - XB7NG21
DESCRIPTION
| Range of product: | Harmony XB7 |
|---|---|
| Product or component type: | Selector switch |
| Device short name: | XB7 |
| Mounting diameter: | 22 mm |
| Sale per indivisible quantity: | 10 |
| Product weight: | 0.05 kg |
| IP degree of protection: | IP20 (rear face) conforming to IEC 60529IP65 (front face) conforming to IEC 60529 |
| Shape of signaling unit head: | Round |
| Type of operator: | stay put |
| Operator position information: | 2 positions 90° |
| Type of keylock: | Ronis 455 |
| Key withdrawal position: | Left-hand |
| Contacts type and composition: | 1 NO |
| Positive opening: | Without |
| CAD overall width: | 29 mm |
|---|---|
| CAD overall height: | 29 mm |
| CAD overall depth: | 83 mm |
| Terminals description ISO n°1: | (13-14)NO |
| Device mounting: | Fixing hole - diameter: 22.5 mm 22.3 +0.4/0 conforming to EN/IEC 60947-1 |
| Fixing center: | >= 30 x 40 mm (support panel) metal - thickness: 1...6 mm>= 30 x 40 mm (support panel) plastic - thickness: 2...6 mm |
| Fixing mode: | Fixing nut: 2...2.4 N.m |
| Contact operation: | Slow-break |
| Mechanical durability: | 300000 cycles |
| Connections - terminals: | Screw clamp terminals, Screw clamp terminals, 1 x 0.34...2 x 2.5 mm² without cable end conforming to EN/IEC 60947-1 |
| Tightening torque: | 0.8...1.2 N.m conforming to EN 60947-1 |
| Shape of screw head: | Cross compatible with JIS No 1 screwdriverCross compatible with Philips no 1 screwdriverCross compatible with pozidriv No 1 screwdriverSlotted compatible with flat Ø 4 mm screwdriverSlotted compatible with flat Ø 5.5 mm screwdriver |
| Short-circuit protection: | 4 A cartridge fuse type gG conforming to EN/IEC 60947-5-1 |
| [Ui] rated insulation voltage: | 250 V (pollution degree 3) conforming to EN/IEC 60947-1 |
| [Uimp] rated impulse withstand voltage: | 4 kV conforming to EN/IEC 60947-1 |
| [Ie] rated operational current: | 0.1 A at 250 V, DC-13, R300 conforming to EN/IEC 60947-5-10.22 A at 125 V, DC-13, R300 conforming to EN/IEC 60947-5-10.3 A at 240 V, AC-14, D300 conforming to EN/IEC 60947-5-10.6 A at 120 V, AC-14, D300 conforming to EN/IEC 60947-5-1 |
| Electrical durability: | 1000000 cycles, DC-13, 0.3 A at 24 V, operating rate 1000000 cycles, AC-15, 0.03 A at 230 V, operating rate 1000000 cycles, AC-15, 0.09 A at 240 V, operating rate |
| Electrical reliability: | ? |
| Compatibility code: | XB7 |
| Protective treatment: | TH |
|---|---|
| Ambient air temperature for storage: | -40...70 °C |
| Ambient air temperature for operation: | -25...70 °C |
| Electrical shock protection class: | Class II conforming to IEC 61140 |
| NEMA degree of protection: | NEMA 12 conforming to UL 50 ENEMA 3 conforming to UL 50 E |
| Standards: | EN/IEC 60947-1EN/IEC 60947-5-1UL 508JIS C8201-5-1CSA C22.2 No 14JIS C8201-1 |
| Vibration resistance: | 5 gn (f= 2...500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance: | 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-2730 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3606480470271 |
|---|
