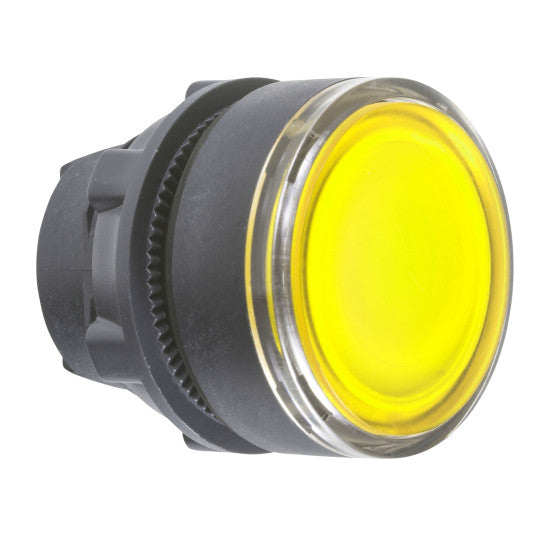

Head for illuminated push button, Harmony XB5, XB4, yellow flush pushbutton Ø22 mm spring return integral LED - ZB5AW383
SKU : ZB5AW383
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Head for illuminated push button, Harmony XB5, XB4, yellow flush pushbutton Ø22 mm spring return integral LED - ZB5AW383
DESCRIPTION
| Range of product: | Harmony XB5 |
|---|---|
| Product or component type: | Head for illuminated push-button |
| Device short name: | ZB5 |
| Product compatibility: | Integral LED |
| Bezel material: | Dark grey plastic |
| Mounting diameter: | 22 mm |
| Sale per indivisible quantity: | 1 |
| Shape of signaling unit head: | Round |
| Type of operator: | spring return |
| Operator profile: | Yellow flush, unmarked |
| Operator additional information: | With plain lens |
| CAD overall width: | 29 mm |
|---|---|
| CAD overall height: | 29 mm |
| CAD overall depth: | 30 mm |
| Product weight: | 0.017 kg |
| Resistance to high pressure washer: | 7000000 Pa at 55 °C, distance |
| Mechanical durability: | 10000000 cycles |
| Main group: | Illum push-button |
| Group of product: | Flush push integral LED |
| Station name: | XALD 1...5 cut-outsXALK 2...5 cut-outs |
| Cap/operator or lens colour: | Yellow |
| Marking: | Unmarked |
| Electrical composition code: | M1 for M2 for M6 for M10 for MF1 for MR1 for |
| Device presentation: | Basic sub-assemblies |
| Customizable: | Yes |
| Customizable: | 1 |
| GCR BRIDGE: | ZB5AWCUST05 |
| Compatibility code: | ZB5 |
| Protective treatment: | TC |
|---|---|
| Ambient air temperature for storage: | -40...70 °C |
| Ambient air temperature for operation: | -40...70 °C |
| Overvoltage category: | Class II conforming to IEC 60536 |
| IP degree of protection: | IP66 conforming to IEC 60529IP67IP69IP69K |
| NEMA degree of protection: | NEMA 13NEMA 4X |
| IK degree of protection: | IK05 conforming to EN 50102 |
| Product certifications: | GLBVDNVLROS (Lloyds register of shipping)UL listedCSA |
| Vibration resistance: | 5 gn (f= 2...500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance: | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-2750 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3606481206411 |
|---|
