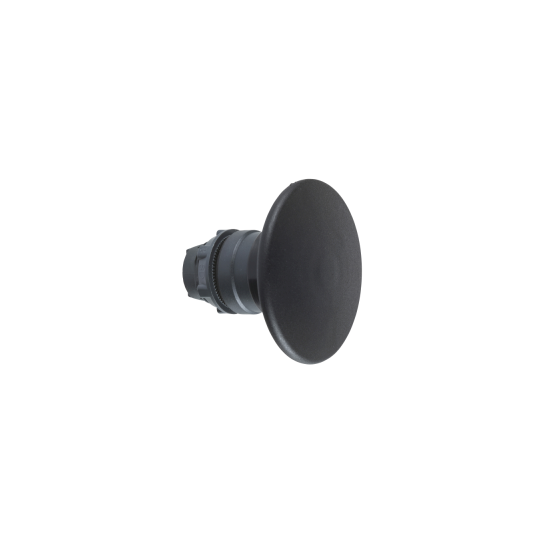

Head for non illuminated push button, Harmony XB5, black Ø 60 mushroom pushbutton Ø22 mm latching turn release - ZB5AS62
SKU : ZB5AS62
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Head for non illuminated push button, Harmony XB5, black Ø 60 mushroom pushbutton Ø22 mm latching turn release - ZB5AS62
DESCRIPTION
| Range of product: | Harmony XB5 |
|---|---|
| Product or component type: | Head for non-illuminated push-button |
| Device short name: | ZB5 |
| Bezel material: | Dark grey plastic |
| Head type: | Standard |
| Mounting diameter: | 22 mm |
| Sale per indivisible quantity: | 1 |
| Shape of signaling unit head: | Round |
| Type of operator: | latching |
| Reset: | Turn to release |
| Operator profile: | Black mushroom Ø 60 mm, unmarked |
| Device presentation: | Basic element |
| CAD overall width: | 60 mm |
|---|---|
| CAD overall height: | 60 mm |
| CAD overall depth: | 57 mm |
| Product weight: | 0.064 kg |
| Mechanical durability: | 500000 cycles |
| Main group: | Mushroom head |
| Group of product: | Mushroom turn to release |
| Station name: | XALD 1 cut-out |
| Cap/operator or lens colour: | Black |
| Marking: | Unmarked |
| Electrical composition code: | C11 for C15 for SF1 for SR1 for C7 for C8 for C10 for |
| Customizable: | No |
| Customizable: | 1 |
| GCR BRIDGE: | ZB5AXCUST01 |
| Compatibility code: | ZB5 |
| Protective treatment: | TH |
|---|---|
| Ambient air temperature for storage: | -40...70 °C |
| Ambient air temperature for operation: | -40...70 °C |
| Overvoltage category: | Class II conforming to IEC 60536 |
| IP degree of protection: | IP66 conforming to IEC 60529IP67IP69IP69K |
| NEMA degree of protection: | NEMA 13NEMA 4X |
| Resistance to high pressure washer: | 7000000 Pa at 55 °C, distance |
| IK degree of protection: | IK03 conforming to IEC 50102 |
| Standards: | EN/IEC 60947-1EN/IEC 60947-5-4JIS C8201-5-1UL 508CSA C22.2 No 14EN/IEC 60947-5-1JIS C8201-1 |
| Product certifications: | BVCSADNVGLLROS (Lloyds register of shipping)UL listed |
| Vibration resistance: | 5 gn (f= 2...500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance: | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-2750 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389110906875 |
|---|
