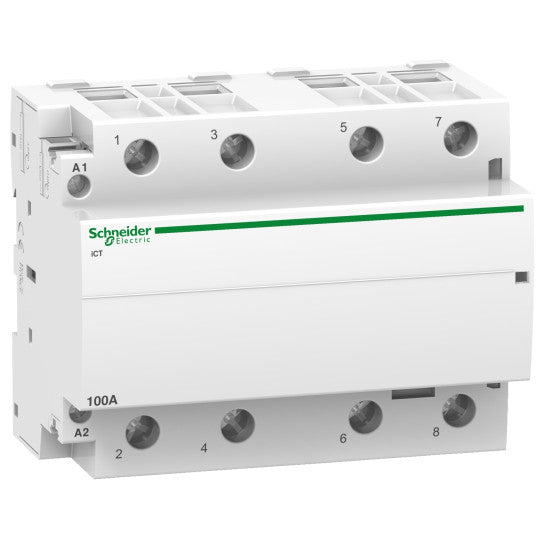

iCT 100A 4NO 220...240V 50Hz contactor - A9C20884
SKU : A9C20884
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
iCT 100A 4NO 220...240V 50Hz contactor - A9C20884
DESCRIPTION
| Range of product: | ICT |
|---|---|
| Range: | Acti9 |
| Product name: | Acti9 iCT |
| Product or component type: | Contactor |
| Device short name: | ICT |
| Device application: | Heating-low inductive load |
| Poles description: | 4P |
| [Ie] rated operational current: | 100 A AC-7A |
| Pole contact composition: | 4 NO |
| Network type: | AC |
| Utilisation category: | AC-1 conforming to EN 60947-4-1AC-7A conforming to EN 61095AC-7A conforming to IEC 61095AC-7A conforming to UTE C 61-481AC-1 conforming to IEC 60947-4-1 |
| Control type: | Remote control |
| [Uc] control circuit voltage: | 220...240 V AC 50 Hz |
| Network frequency: | 50 Hz |
|---|---|
| [Ue] rated operational voltage: | 400 V AC 50 Hz |
| Maximum power: | AC-7A: 4.2 W at 400 V AC 50 Hz |
| [Ui] rated insulation voltage: | 500 V AC 50 Hz |
| [Uimp] rated impulse withstand voltage: | 4 kV |
| Control signal type: | Maintained |
| Switching frequency: | 100 switching operations/day |
| Local signalling: | Action indicator |
| Hold-in power consumption in VA: | 13 VA |
| Inrush power in VA: | 106 VA |
| Mounting mode: | Clip-on |
| Mounting support: | 35 mm symmetrical DIN rail |
| 9 mm pitches: | 12 |
| Height: | 85 mm |
| Width: | 108 mm |
| Depth: | 60 mm |
| Colour: | White |
| Electrical durability: | 30000 cycles EN 61095 400 V 16 A AC 50 Hz AC-7A30000 cycles UTE C 61-481 400 V 6 A AC 50 Hz AC-7A30000 cycles IEC 61095 400 V AC 50 Hz AC-7A |
| Connections - terminals: | Control circuit: tunnel type terminals2 cable(s) 1.5 mm² rigidControl circuit: tunnel type terminals1 cable(s) 1.5...2.5 mm² rigidControl circuit: tunnel type terminals2 cable(s) 1.5...2.5 mm² flexiblePower circuit: tunnel type terminals1 cable(s) 6...35 mm² solid or flexible |
| Tightening torque: | Power circuit: 3.5 N.mControl circuit: 0.8 N.m A1 / A2 |
| Product compatibility: | IACTpIACTsIATEtIACTc |
| Compatibility code: | ICT |
| Market segment: | Small commercialResidential |
| Standards: | EN 61095IEC 61095UTE C 61-481 |
|---|---|
| Noise level: | 30 dB |
| Heat dissipation: | 4.2 W at 50/60 Hz |
| IP degree of protection: | IP20 conforming to IEC 60529IP40 (modular enclosure) conforming to IEC 60529 |
| Pollution degree: | 2 |
| Tropicalisation: | 2 conforming to EN 60947-4-1 |
| Relative humidity: | 95 % at 55 °C |
| Operating altitude: | 2000 m |
| Ambient air temperature for operation: | -5...60 °C |
| Ambient air temperature for storage: | -40...70 °C |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3606480375200 |
|---|
