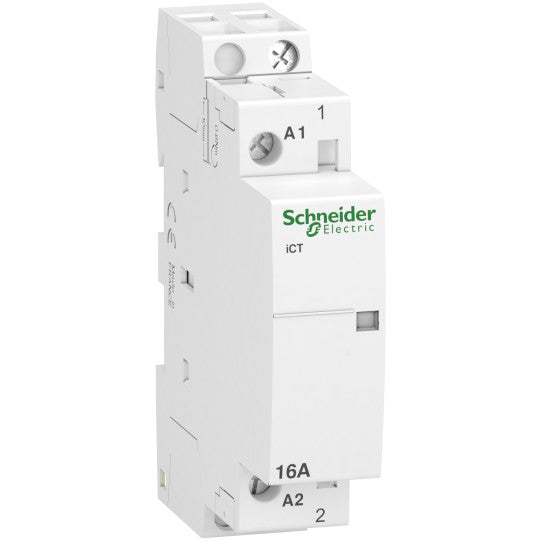

iCT 16A 1NO 12V 50Hz contactor - A9C22011
SKU : A9C22011
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
iCT 16A 1NO 12V 50Hz contactor - A9C22011
DESCRIPTION
| Range of product: | ICT |
|---|---|
| Range: | Acti9 |
| Product name: | Acti9 iCT |
| Product or component type: | Contactor |
| Device short name: | iCT |
| Device application: | Motor-heating-lighting |
| Poles description: | 1P |
| [Ie] rated operational current: | 16 A AC-7A6 A AC-7B |
| Pole contact composition: | 1 NO |
| Network type: | AC |
| Control type: | Remote control |
| [Uc] control circuit voltage: | 12 V AC 50 Hz |
| Network frequency: | 50 Hz |
|---|---|
| [Ue] rated operational voltage: | 250 V AC 50 Hz |
| Maximum power: | 1.3 W at 250 V AC |
| [Ui] rated insulation voltage: | 500 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage: | 4 kV |
| Control signal type: | Maintained |
| Switching frequency: | 100 switching operations/day |
| Local signalling: | Action indicator |
| Hold-in power consumption in VA: | 3.8 VA |
| Inrush power in VA: | 15 VA |
| Mounting mode: | Clip-on |
| Mounting support: | 35 mm symmetrical DIN rail |
| 9 mm pitches: | 2 |
| Height: | 81 mm |
| Width: | 18 mm |
| Depth: | 68.5 mm |
| Colour: | White |
| Mechanical durability: | 1000000 cycles |
| Electrical durability: | 100000 cycles IEC/EN 61095 16 A 50 Hz AC-7A30000 cycles IEC/EN 61095 6 A 50 Hz AC-7B30000 cycles IEC/EN 61095 50 Hz AC-7C100000 cycles EN/IEC 60947-4-1 50 Hz AC-130000 cycles EN/IEC 60947-4-1 50 Hz AC-330000 cycles EN/IEC 60947-4-1 50 Hz AC-5a30000 cycles EN/IEC 60947-4-1 50 Hz AC-5b |
| Connections - terminals: | Control circuit: tunnel type terminals2 cable(s) 1.5 mm² rigidPower circuit: tunnel type terminals1 cable(s) 1...4 mm² flexiblePower circuit: tunnel type terminals1 cable(s) 1.5...6 mm² rigidControl circuit: tunnel type terminals1 cable(s) 1.5...2.5 mm² rigidControl circuit: tunnel type terminals2 cable(s) 1.5...2.5 mm² flexible |
| Tightening torque: | Control circuit: 0.8 N.mPower circuit: 0.8 N.m |
| Product compatibility: | IACTs |
| Compatibility code: | ICT |
| Market segment: | Small commercialResidential |
| Standards: | IEC/EN 61095 |
|---|---|
| Noise level: | 30 dB |
| Heat dissipation: | 1.3 W |
| IP degree of protection: | IP20 conforming to IEC 60529IP40 (modular enclosure) conforming to IEC 60529 |
| Pollution degree: | 2 |
| Tropicalisation: | 2 conforming to EN 60947-4-12 conforming to EN 610952 conforming to IEC 1095 |
| Relative humidity: | 95 % at 55 °C |
| Operating altitude: | 2000 m |
| Ambient air temperature for operation: | -5...60 °C |
| Ambient air temperature for storage: | -40...70 °C |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Unit Type of Package 1: | PCENumber of Units in Package 1 |
| Code EAN: | 3606480096907 |
|---|
