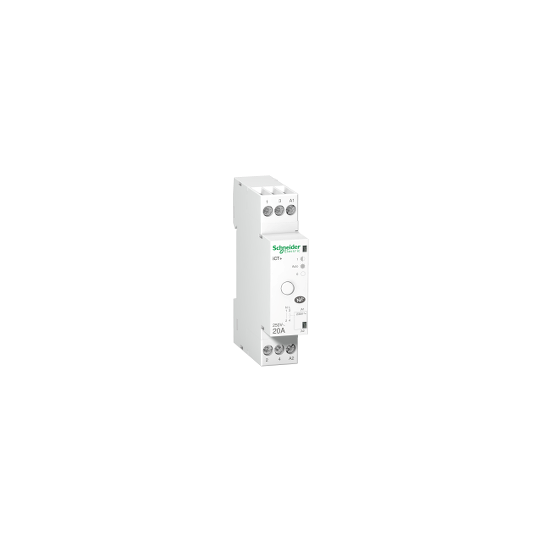

iCT plus HC 20A 1P Uc 230VAC - A9C15031
SKU : A9C15031
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
iCT plus HC 20A 1P Uc 230VAC - A9C15031
DESCRIPTION
| Range of product: | ICT |
|---|---|
| Range: | Acti9 |
| Product name: | Acti9 iCT+ |
| Product or component type: | Contactor |
| Device short name: | ICT+ |
| Device application: | Control circuit |
| Poles description: | 1P |
| [Ie] rated operational current: | 20 A AC-7A20 A AC-7B |
| Pole contact composition: | 1 NO |
| Network type: | AC |
| Control type: | Remote and manual control |
| [Uc] control circuit voltage: | 230 V AC 50 Hz |
| Network frequency: | 50 Hz |
|---|---|
| [Ue] rated operational voltage: | 250 V AC 50 Hz |
| Maximum power: | 3.6 kW at 250 V AC |
| [Ui] rated insulation voltage: | 300 V |
| Control signal type: | Maintained |
| Switching frequency: | 6 switching operation/minute |
| Local signalling: | Color indicator |
| Hold-in power consumption in VA: | 1.1 VA |
| Inrush power in VA: | 11 VA |
| Mounting mode: | Clip-on |
| Mounting support: | 35 mm symmetrical DIN rail |
| 9 mm pitches: | 2 |
| Height: | 81 mm |
| Width: | 18 mm |
| Depth: | 60 mm |
| Product weight: | 70 g |
| Colour: | White |
| Mechanical durability: | 5000000 cycles |
| Electrical durability: | 5000000 cycles |
| Connections - terminals: | Tunnel type terminal2 cable(s) 1.5 mm² rigidTunnel type terminal2 cable(s) 1.5 mm² flexible with ferruleTunnel type terminal2 cable(s) 2.5 mm² rigidTunnel type terminal2 cable(s) 2.5 mm² flexibleTunnel type terminal1 cable(s) 4 mm² rigidTunnel type terminal1 cable(s) 4 mm² flexible |
| Tightening torque: | 1 N.m |
| Wire stripping length: | 10 mm |
| Product compatibility: | No auxiliary |
| Compatibility code: | ICT+ |
| Market segment: | Small commercialResidential |
| Standards: | EN 60669-2-1 |
|---|---|
| Product certifications: | NF |
| Noise level: | 10 dB |
| IP degree of protection: | IP20 conforming to IEC 60529IP40 (modular enclosure) conforming to IEC 60529 |
| Pollution degree: | 3 |
| Tropicalisation: | 2 conforming to IEC 60068-1 |
| Relative humidity: | 95 % at 55 °C |
| Operating altitude: | 2000 m |
| Ambient air temperature for operation: | -5...55 °C |
| Ambient air temperature for storage: | -40...60 °C |
| REACh Regulation: | Reference contains Substances of Very High Concern above the thresholdREACh free of SVHC |
| Code EAN: | 3606480376962 |
|---|
