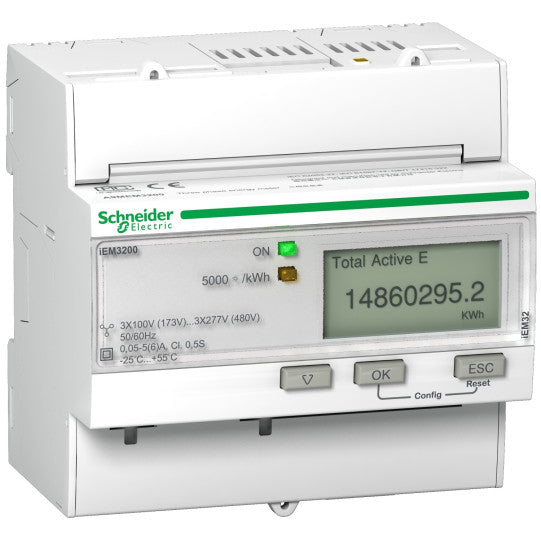

iEM3200 energy meter - CT - A9MEM3200
DESCRIPTION
| Range: | Acti 9 |
|---|---|
| Product name: | Acti 9 iEM3000 |
| Device short name: | IEM3200 |
| Product or component type: | Energy meter |
| Market segment: | Buildings small building cost management: billing: main incomerBuildings small building cost management: billing: sub feederBuildings small building cost management: billing: panelboardBuildings medium building cost management: billing: main incomerBuildings medium building cost management: billing: sub feederBuildings medium building cost management: billing: panelboardBuildings large building cost management: billing: main incomerBuildings large building cost management: billing: sub feederBuildings large building cost management: billing: panelboardBuildings multi-site cost management: billing: main incomerBuildings multi-site cost management: billing: sub feederBuildings multi-site cost management: billing: panelboardData center cost management: billingHealthcare cost management: billingIndustry cost management: billingBuildings small building cost management: cost allocation: main incomerBuildings small building cost management: cost allocation: sub feederBuildings small building cost management: cost allocation: panelboardBuildings medium building cost management: cost allocation: main incomerBuildings medium building cost management: cost allocation: sub feederBuildings medium building cost management: cost allocation: panelboardBuildings large building cost management: cost allocation: main incomerBuildings large building cost management: cost allocation: sub feederBuildings large building cost management: cost allocation: panelboardBuildings multi-site cost management: cost allocation: main incomerBuildings multi-site cost management: cost allocation: sub feederBuildings multi-site cost management: cost allocation: panelboardData center cost management: cost allocationHealthcare cost management: cost allocationIndustry cost management: cost allocation |
| Poles description: | 1P + N3P3P + N |
|---|---|
| Type of measurement: | Active energy |
| Device application: | Sub billingPartial meter |
| Accuracy class: | Class 0.5S active energy conforming to IEC 62053-22Class 0.5S active energy conforming to IEC 61557-12Class C active energy conforming to EN 50470-3 |
| Analogue input type: | External CT 1 A or 5 A |
| [In] rated current: | 5 A1 A |
| Rated voltage: | 100...277 V173...480 V |
| Network frequency: | 60 Hz50 Hz |
| Technology type: | Electronic |
| Display type: | LCD display |
| Sampling rate: | 32 samples/cycle |
| Measurement current: | 1...32767000 mA |
| Maximum value measured: | 99999999 MWh |
| Communication port protocol: | - |
| Communication port support: | - |
| Local signalling: | Green indicator light: power ONYellow flashing LED: accuracy checking |
| Number of inputs: | 0 |
| Number of outputs: | 0 |
| Mounting mode: | Clip-on |
| Mounting support: | DIN rail |
| Connections - terminals: | Current circuit: screw terminals 6 mm² cable(s) Voltage circuit: screw terminals 2.5 mm² cable(s) |
| Overvoltage category: | III |
| Standards: | IEC 62053-23IEC 62053-22IEC 61036IEC 61557-12UL 61010-1IEC 61010 |
| Product certifications: | CE conforming to IEC 61010 (safety)CE conforming to EN 61557-12 (power monitor)CE conforming to IEC 61326-1 (EMC)CULus conforming to UL 61010 (safety)CULus conforming to ANSI C12.20 (sub-meter)EAC (sub-meter)RCM conforming to NMI M 6-1 (sub-meter)UL |
| Market segment: | Small commercialResidential |
| Compatibility code: | IEM3200 |
| IP degree of protection: | IP40 front panel: conforming to IEC 60529IP20 body: conforming to IEC 60529 |
|---|---|
| Pollution degree: | 2 |
| Relative humidity: | 5...95 % at 50 °C |
| Ambient air temperature for operation: | -25...55 °C - IEC |
| Ambient air temperature for storage: | -40...85 °C |
| Operating altitude: | |
| Colour: | White |
| 9 mm pitches: | 10 |
| Width: | 90 mm |
| Height: | 95 mm |
| Depth: | 69 mm |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3606480481536 |
|---|
