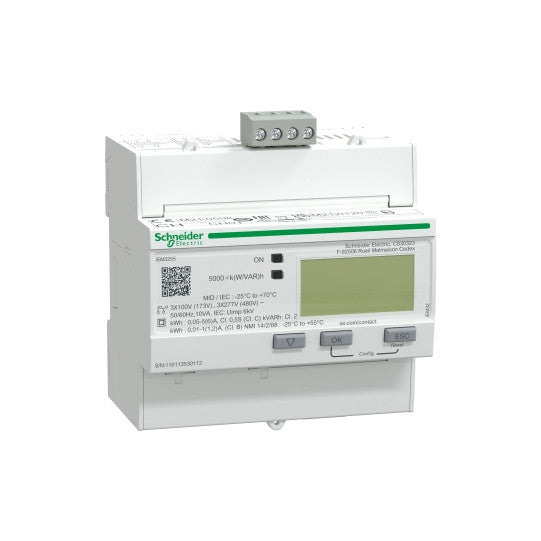

iEM3250 energy meter - CT - Modbus - A9MEM3250
SKU : A9MEM3250
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
iEM3250 energy meter - CT - Modbus - A9MEM3250
DESCRIPTION
| Range: | Acti 9 |
|---|---|
| Product name: | Acti 9 iEM3000 |
| Device short name: | IEM3250 |
| Product or component type: | Energy meter |
| Market segment: | Buildings small building cost management: billing: main incomerBuildings small building cost management: billing: sub feederBuildings small building cost management: billing: panelboardBuildings medium building cost management: billing: main incomerBuildings medium building cost management: billing: sub feederBuildings medium building cost management: billing: panelboardBuildings large building cost management: billing: main incomerBuildings large building cost management: billing: sub feederBuildings large building cost management: billing: panelboardBuildings multi-site cost management: billing: main incomerBuildings multi-site cost management: billing: sub feederBuildings multi-site cost management: billing: panelboardData center cost management: billingHealthcare cost management: billingIndustry cost management: billingBuildings small building cost management: cost allocation: main incomerBuildings small building cost management: cost allocation: sub feederBuildings small building cost management: cost allocation: panelboardBuildings medium building cost management: cost allocation: main incomerBuildings medium building cost management: cost allocation: sub feederBuildings medium building cost management: cost allocation: panelboardBuildings large building cost management: cost allocation: main incomerBuildings large building cost management: cost allocation: sub feederBuildings large building cost management: cost allocation: panelboardBuildings multi-site cost management: cost allocation: main incomerBuildings multi-site cost management: cost allocation: sub feederBuildings multi-site cost management: cost allocation: panelboardData center cost management: cost allocationHealthcare cost management: cost allocationIndustry cost management: cost allocation |
| Poles description: | 3P3P + N1P + N |
|---|---|
| Type of measurement: | Active energyCurrentVoltageActive power |
| Device application: | Sub billingPartial meter |
| Accuracy class: | Class 0.5S active energy conforming to IEC 62053-22Class 0.5S active energy conforming to IEC 61557-12Class C active energy conforming to EN 50470-3 |
| Analogue input type: | External CT 1 A or 5 A |
| [In] rated current: | 5 A1 A |
| Rated voltage: | 100...277 V173...480 V |
| Network frequency: | 50 Hz60 Hz |
| Technology type: | Electronic |
| Display type: | LCD display |
| Sampling rate: | 32 samples/cycle |
| Measurement current: | 1...32767000 mA |
| Maximum value measured: | 99999999 MWh |
| Communication port protocol: | Modbus RTU at 9.6, 19.2 and 38.4 kbauds even/odd or none, insulation 4000 V |
| Communication port support: | Screw terminal block: RS485 |
| Local signalling: | Green indicator light: power ONYellow flashing LED: accuracy checkingYellow indicator light: communications are active on the Modbus port (Modbus) |
| Number of inputs: | 0 |
| Number of outputs: | 0 |
| Mounting mode: | Clip-on |
| Mounting support: | DIN rail |
| Connections - terminals: | Current circuit: screw terminals 6 mm² cable(s) Voltage circuit: screw terminals 2.5 mm² cable(s) |
| Overvoltage category: | III |
| Standards: | IEC 61557-12IEC 62053-22IEC 61036IEC 62053-23UL 61010-1IEC 61010 |
| Product certifications: | CE conforming to IEC 61010 (safety)CE conforming to EN 61557-12 (power monitor)CE conforming to IEC 61326-1 (EMC)CULus conforming to UL 61010 (safety)CULus conforming to ANSI C12.20 (sub-meter)EAC (sub-meter)RCM conforming to NMI M 6-1 (sub-meter)UL |
| Market segment: | Small commercialResidential |
| Compatibility code: | IEM3250 |
| IP degree of protection: | IP40 front panel: conforming to IEC 60529IP20 body: conforming to IEC 60529 |
|---|---|
| Pollution degree: | 2 |
| Relative humidity: | 5...95 % at 50 °C |
| Ambient air temperature for operation: | -25...55 °C - IEC |
| Ambient air temperature for storage: | -40...85 °C |
| Operating altitude: | |
| Colour: | White |
| 9 mm pitches: | 10 |
| Width: | 90 mm |
| Height: | 95 mm |
| Depth: | 69 mm |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3606480481567 |
|---|
