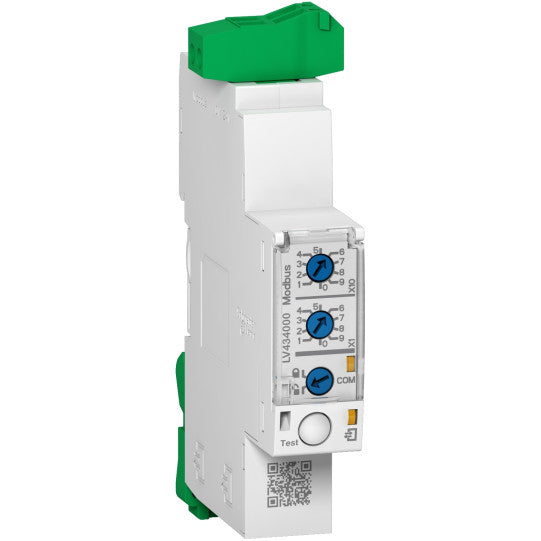

IFM Modbus-SL interface module, Enerlin'X - LV434000
SKU : LV434000
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
IFM Modbus-SL interface module, Enerlin'X - LV434000
DESCRIPTION
| Range: | Enerlin'X |
|---|---|
| Range of product: | ComPact NSX100...250ComPact NSX400...630ComPact NS630b...1600ComPact NS1600b...3200 |
| Device short name: | IFM |
| Product or component type: | Interface module |
| Range compatibility: | Masterpact MTZMasterPact NTMasterpact NWComPact NSXComPact NS630b...1600ComPact NS1600b...3200PowerPact JPowerPact LPowerPact HPowerPact PPowerPact R |
| Communication network type: | Universal Logic Plug on 2-port RJ45Modbus, Modbus Serial line slave9.6...38.4 kbauds on 1 RJ45 |
|---|---|
| Mounting mode: | By clips |
| Mounting support: | 35 mm DIN rail |
| Accuracy class: | Class 2 power supply |
| Input voltage: | 24 V DC - 20...10 % |
| Output voltage: | 24 V DC |
| Output current: | 3 A |
| Current consumption: | 30 mA 24 V DC room temperature |
| Power consumption in W: | 1.635 W |
| Memory type: | EEPROM data storage |
| Connections - terminals: | RJ45 connectorScrew type terminals |
| Product certifications: | EACcULusCEFCC |
| Standards: | CISPR 22UL 61010UL 60950CISPR 24CISPR 11IEC 60950IACS E10 |
| Height: | 109 mm |
| Width: | 18 mm |
| Depth: | 73 mm |
| Product weight: | 120 g |
| Compatibility code: | IFM |
| IP degree of protection: | Connectors: IP20Other parts: IP30 |
|---|---|
| Relative humidity: | 5...85 % at 55 °C without condensation |
| Ambient air temperature for storage: | -40...85 °C |
| Ambient air temperature for operation: | -20...70 °C |
| Pollution degree: | 3 |
| Flame retardance: | V0 conforming to UL 94 |
| Shock resistance: | +/- 15 gn 11 ms conforming to EN/IEC 60068-2-27 |
| Vibration frequency: | 5...8.4 Hz conforming to EN/IEC 60068-2 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3606481201683 |
|---|
