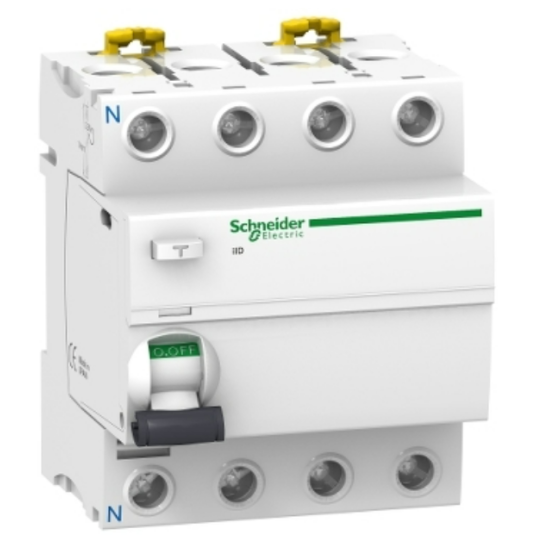

iID 4P 25A 300mA type A - A9R24425
SKU : A9R24425
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
iID 4P 25A 300mA type A - A9R24425
DESCRIPTION
| Standards: | EN/IEC 61008-1 |
|---|---|
| IP protection degree: | |
| Pollution degree: | 3 |
| Electromagnetic compatibility: | Waveform withstand 8/20 µs, 250 A in accordance with EN/IEC 61008-1 |
| Operating temperature: | -25?60 °C |
| Ambient temperature for storage: | -40?85 °C |
| Range: | Acti9 |
|---|---|
| Product name: | Acti 9 iID |
| Product type: | Residual current circuit breaker |
| Device name: | iID |
| Pole description: | 4P |
| Neutral position: | Left |
| Rated operational current: | 25 A |
| Network type: | AC |
| Differential sensitivity: | 300 mA |
| Differential protection delay: | Instantaneous |
| Differential protection class: | Type A |
| Installation position: | Downstream |
| Network frequency: | 50/60 Hz |
| Rated operational voltage: | 380...415 V AC 50/60 Hz |
| Differential technology: | Voltage independent |
| Breaking and closing power rating: | |
| Idm: | 1500 A Im |
| Conditional short-circuit current: | 10 kA |
| Rated isolation voltage: | 500 V AC 50/60 Hz |
| Impulse withstand voltage: | 6 kV |
| Peak current: | 250 A |
| Fully visible cut-off: | Regulated switching mode |
| Control type: | Toggle switch |
| Installation mode: | Clip-in |
| Mounting support: | DIN rail |
| Pitch: | 8 mm |
| Height: | 91 mm |
| Width: | 72 mm |
| Depth: | 73.5 mm |
| Product weight: | 0.37 kg |
| Color: | White |
| Mechanical lifetime: | 20,000 cycles |
| Electrical lifetime: | |
| Optional locking description: | Padlock device |
| Connection mode: | |
| Wire stripping length: | 14 mm for top or bottom connection |
| Tightening torque: | 3.5 N.m top or bottom |
| AC-1: | 15,000 cycles |
| Idm: | 1500 A |
| Im: | 1500 A |
| Code EAN: | 3606480374739 |
|---|---|
| Contexte: | N/A |
