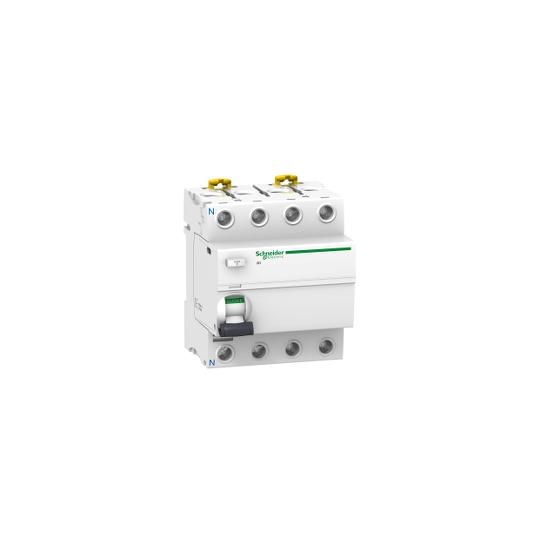

iID 4P 25A 30mA type A - A9R21425

Name: iID 4P 25A 30mA type A - A9R21425
Brand: Schneider Electric
SKU: A9R21425
Availability: InStock

SKU : A9R21425

Regular price €0,00

Contact us for price and lead time for this product. Our team will respond quickly.

We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.

Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.

We take great care in packaging and ensure all goods are delivered safely and promptly.

Lead time: 2–3 weeks – Ships quickly after order confirmation

iID 4P 25A 30mA type A - A9R21425

DESCRIPTION

DESCRIPTION

Standards:	EN/IEC 61008-1
IP protection degree:
Pollution degree:	3
Electromagnetic compatibility:	Waveform withstand 8/20 µs, 250 A in accordance with EN/IEC 61008-1
Operating temperature:	-25?60 °C
Ambient temperature for storage:	-40?85 °C

Range:	Acti9
Product name:	Acti 9 iID
Product or equipment type:	Residual current circuit breaker
Device name:	iID
Pole description:	4P
Neutral position:	Left
Rated operational current In:	25 A
Network type:	AC
Residual current sensitivity:	30 mA
Residual protection time delay:	Instantaneous
Residual current protection class:	Type A
Device location in installation:	Outgoing
Network frequency:	50/60 Hz
[Ue] Rated operational voltage:	380...415 V AC 50/60 Hz
Residual current technology:	Voltage-independent
Rated making and breaking capacity:
Idm:	1500 A Im
Conditional short-circuit current:	10 kA
[Ui] Rated insulation voltage:	500 V AC 50/60 Hz
[Uimp] Rated impulse withstand voltage:	6 kV
Peak current:	250 A
Fully apparent break:	Regulated switching mode
Control type:	Toggle
Mounting mode:	Clip-on
Mounting support:	DIN rail
9 mm pitch:	8
Height:	91 mm
Width:	72 mm
Depth:	73.5 mm
Product weight:	0.37 kg
Color:	White
Mechanical durability:	20000 cycles
Electrical durability:
Optional locking description:	Padlocking device
Connection mode:
Wire stripping length:	14 mm for top or bottom connection
Tightening torque:	3.5 N.m top or bottom
AC-1:	15000 cycles
Idm:	1500 A
Im:	1500 A

Code EAN:

3606480090851

Contexte:

The Acti 9 iID DIN rail RCCBs, are fully coordinated with the iC60 MCBs to warranty an absolute people protection & equipment against electrocution, risk of fire & improved continuity of service.

VISI-SAFE : for safe operation and maintenance work.
Class-2 insulation : continuous safety for operators and unqualified personnel.
VisiTrip : detects faulty outgoers quickly and reduces intervention time.
Fully immune earth leakage protection : better continuity of service, especially with the new Si type (Super immune) in polluted environments and networks.
The optional electrical auxiliaries and mounting accessories are the same as for the Acti 9 iC60 Miniature Circuit-Breakers (MCBs) offer.
Nominal current: 1 to 100 A
Si (Super immune), AC, A,
30mA sensitivity: additional protection against direct contact (in accordance with IEC 60364)
100mA, 300mA, 500mA sensitivities: additional protection against fire and indirect contact (in accordance with IEC 60364)
Selective version : to ensure correct discrimination between different residual current circuit-breakers and the tripping of the device closest to the fault
Full coordination with Acti 9 and Multi 9 MCBs
Compliance with standard IEC EN 61008-1, certified by national official authorities
Suitable for isolation in accordance with industrial standard IEC/EN 60947-2
Operating voltage: up to 400 V AC, insulation voltage: 500 V
Optional auxiliaries: indication of state and tripping, shunt tripping, undervoltage tripping, overvoltage tripping
