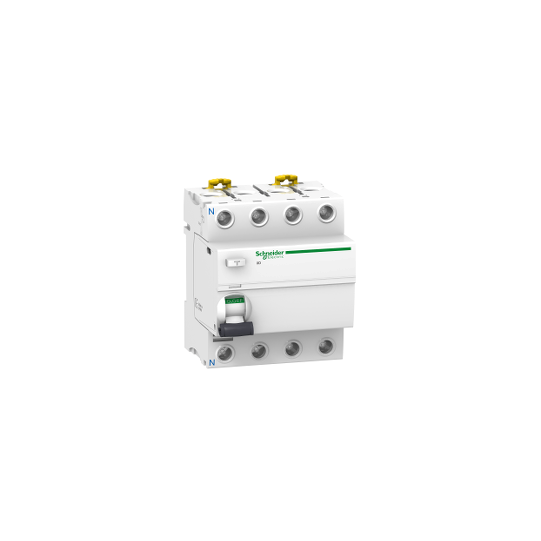

IID 4P 80A 300ma type A - A9R24480
SKU : A9R24480
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
IID 4P 80A 300ma type A - A9R24480
DESCRIPTION
| Standards: | EN/IEC 61008-1 |
|---|---|
| IP protection degree: | |
| Pollution degree: | 3 |
| Electromagnetic compatibility: | Waveform withstand 8/20 µs, 250 A in accordance with EN/IEC 61008-1 |
| Operating temperature: | -25?60 °C |
| Ambient temperature for storage: | -40?85 °C |
| Range: | Acti9 |
|---|---|
| Product name: | Acti 9 iID |
| Product or equipment type: | Residual current circuit breaker |
| Device name: | iID |
| Pole description: | 4P |
| Neutral pole position: | Left |
| Rated operational current In: | 80 A |
| Network type: | AC |
| Residual sensitivity: | 300 mA |
| Differential protection time delay: | Instantaneous |
| Differential protection class: | Type A |
| Device position in installation: | Outgoing |
| Network frequency: | 50/60 Hz |
| [Ue] Rated operational voltage: | 380...415 V AC 50/60 Hz |
| Differential technology: | Voltage-independent |
| Rated breaking and making capacity: | |
| Idm: | 1500 A Im |
| Conditional short-circuit current rating: | 10 kA |
| [Ui] Rated insulation voltage: | 500 V AC 50/60 Hz |
| [Uimp] Rated impulse withstand voltage: | 6 kV |
| Fully apparent disconnection: | Yes |
| Control type: | Rocker button |
| Mounting mode: | Clip-on |
| Mounting support: | DIN rail |
| 9 mm pitches: | 8 |
| Height: | 91 mm |
| Width: | 72 mm |
| Depth: | 73.5 mm |
| Product weight: | 0.37 kg |
| Colour: | White |
| Mechanical durability: | 20000 cycles |
| Electrical durability: | |
| Description of optional locking: | Padlock device |
| Connection mode: | |
| Wire stripping length: | 14 mm for top or bottom connection |
| Tightening torque: | 3.5 N·m top or bottom |
| AC-1: | 10000 cycles |
| Idm: | 1500 A |
| Im: | 1500 A |
| Code EAN: | 3606480090738 |
|---|---|
| Contexte: | N/A |
